5 Key Factors When Choosing a Fuel Sender Unit

"Need a reliable fuel level Sensor? “It helps you track fuel in real time and avoid running empty. Some even alert you when fuel is low or support dual-line setups. How can we help you find the right one?

 Whether you're equipping a new boat fuel tank or restoring a classic car, here are 5 key factors to consider when choosing your perfect match.

1. Application
First question: Where will your Boat fuel Level sender be used? This decides everything.
1)Tough conditions? High vibration or harsh environments may need extra protection (like armored casings or spring stabilization).
2)Need fuel lines? Some senders come with built-in pick-up/return ports for cleaner plumbing.
3)Space limits? Top-mounted won’t fit? Side-mount options might save the day.
4)No dashboard? A sensor with an integrated top gauge keeps things simple.
5)Pro tip: Your tank’s location and setup dictate the sender’s design—don’t force a mismatch!
2. Signal Output: Getting Your Gauge & Sender to Talk
Both the sender and gauge must have the same resistance values.
If you pair an American and European sender and gauge then the gauge will read backwards.
If you are converting an analogue sender to a digital network - like NMEA2000 - then you will also need to know the resistance value of the sender in order to get the correct converter and set it correctly in the NMEA network.
 Check the ohms range:
 American standard: 240-33Ω
European standard: 0-190Ω
3. Tank Shape
Is your tank rectangular/square? Is it an irregular shape or circular? Are there baffles or other internal components that could damage the sender? Is there empty space at the top of the tank?
These factors determine whether your sender requires tank-specific calibration. Custom calibration accounts for your tank's unique volume and shape, ensuring accurate fuel level readings on your gauge.
4. Tank Depth
To Allow the Fule Sender not Hit the Bottom of the Tank, Please Measure from the Top of Your Tank to the Bottom on the Outside and Subtract 1 Inch the Length of Sender.

5. Mounting Style
The mounting style is the final consideration when selecting a new fuel tank sending unit. For replacements, verify the existing mounting style to ensure proper compatibility.
Standard mounting options include:

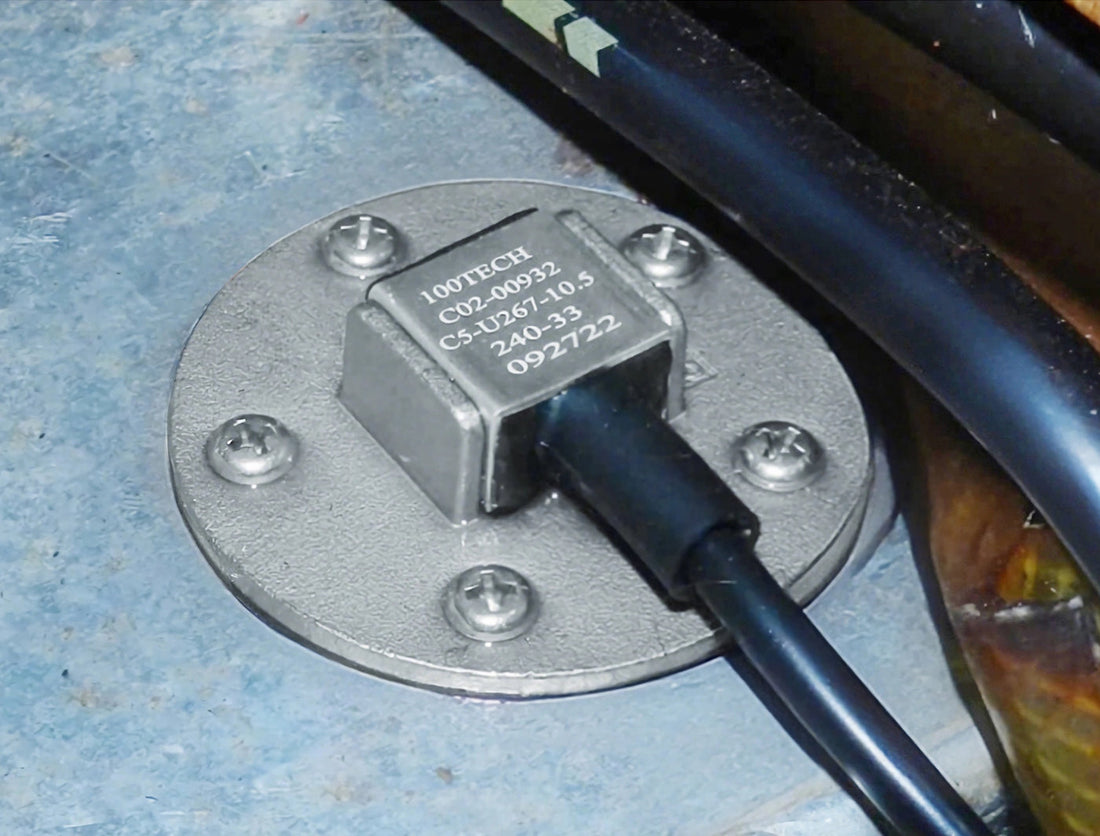

SAE 5-hole bolt pattern
1.25" British Standard Pipe (BSP) thread
1.5" National Pipe Thread (NPT)
For specialized applications, custom mounting solutions like flange-bolt or bayonet styles are also available.
