Introduction
You turn the key, glance at your dashboard, and… nothing. Or worse, the needle is stuck on empty even though you just filled up. Or maybe it's bouncing around like a fish out of water.
"My fuel gauge is not working" is one of the most common complaints among boat owners, truck drivers, and RV owners. The good news? In most cases, the problem is not a mystery. It's usually one of four things: a bad fuel sender unit, a wiring issue, a faulty fuel gauge, or a poor ground connection.
This guide will help you diagnose and fix the problem step by step. And if you need a replacement, we'll show you exactly what to look for.
Step 1: Understand How Your Fuel Gauge System Works
Before you start testing anything, it helps to understand the basic layout.
Your fuel gauge system has three main components:
- Fuel Sender Unit: A variable resistor inside your tank. It changes resistance as the fuel level moves up and down.
- Fuel Gauge: The display on your dashboard that shows the fuel level.
- Wiring: Connects the sender to the gauge and both to power and ground.
How it works: The sender sends a resistance signal to the gauge.
- Empty tank = High resistance (e.g., 240 ohms)
- Full tank = Low resistance (e.g., 33 ohms)
If any part of this system fails, your gauge will give a false reading — or no reading at all.
Step 2: Common Symptoms and Their Likely Causes
Use this table to quickly match your symptom to the most likely culprit:
- Gauge stuck on empty: Dead sender, broken float, or open circuit (no signal)
- Gauge stuck on full: Short circuit in sender or wiring
- Gauge bounces up and down: Poor ground connection or loose wiring
- Gauge reads backwards (full when empty): Wrong ohm range sender for your gauge
- Gauge does nothing (no movement): No power to gauge, or completely dead gauge
Pro tip: Start with the simplest check first — ground connection. A bad ground causes 50% of fuel gauge problems.
Step 3: How to Test Your Fuel Sender Unit with a Multimeter
You don't need special tools. A basic multimeter is enough.
What you need:
- Digital multimeter (set to Ohms/Ω)
- Access to the sender's wires (brown = signal, blue = ground for 100TECH)
Test procedure:
1. Locate the sender on top of your fuel tank.
2. Disconnect the signal wire (brown wire on 100TECH senders).
3. Connect your multimeter leads: one lead to the sender's signal terminal (brown), one lead to the sender's ground terminal (blue) or a clean metal ground on the tank.
4. Move the float arm up and down by hand.
5. Watch the resistance change:
- Float all the way down (Empty): ~240 ohms
- Middle position: ~135 ohms
- Float all the way up (Full): ~33 ohms
If the resistance does NOT change smoothly — or shows "OL" (open line) or 0 ohms at any point — your sender is bad. Replace it.
Step 4: How to Test Your Fuel Gauge
If the sender tests good, the problem may be the gauge itself.
Quick gauge test:
1. Turn the ignition on (engine off for safety).
2. Locate the signal wire at the back of the gauge.
3. Disconnect it.
4. Use a jumper wire to temporarily ground the signal terminal on the gauge.
What happens next:
- Needle moves to Empty (E): Gauge is likely good. Problem is in sender or wiring.
- Needle moves to Full (F) or does nothing: Gauge may be faulty.
You can also test with a variable resistor box if you have one. Set it to 240 ohms and the gauge should read Empty. Set it to 33 ohms and the gauge should read Full.

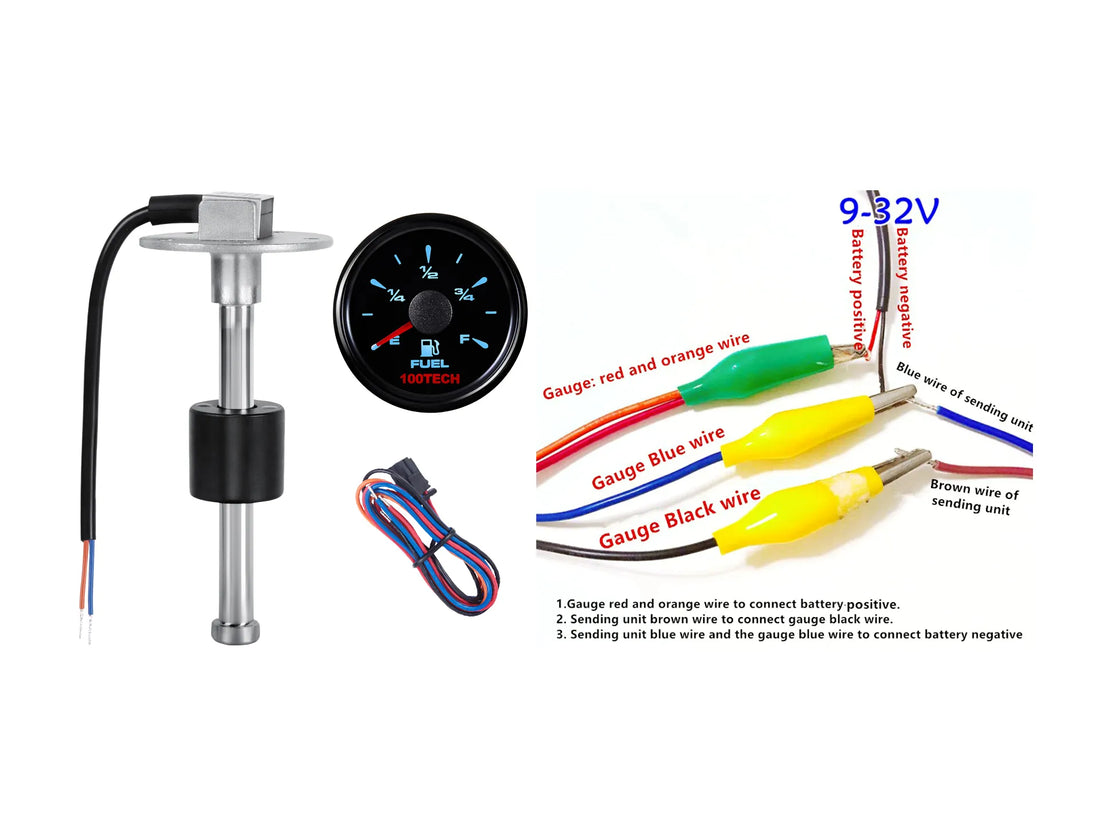

Step 5: Proper Wiring Diagram (100TECH Sender + Gauge)
This is the most common wiring setup for a 240-33 ohm fuel system using 100TECH components.
Wiring reference based on 100TECH installation guide:
- Battery Positive (+): Gauge Red/Orange wire connects to 9-32V power
- Battery Negative (-): Common ground point
- Gauge Blue wire: Connect to battery negative (-)
- Gauge Black wire: Connect to sender brown wire
- Sender Unit Brown wire (Signal): Connect to gauge black wire
- Sender Unit Blue wire (Ground): Connect to battery negative (-)
Simplified wiring diagram text version:
[9-32V Battery Positive] → Gauge Red/Orange Wire
[Gauge Blue Wire] → Battery Negative (-)
[Gauge Black Wire] → Sender Brown Wire
[Sender Brown Wire] → Gauge Black Wire
[Sender Blue Wire] → Battery Negative (-)
Important: The screw hole pattern on the sender flange is not symmetrical. There is only one correct way to align the gasket. The "lead hole" is located 180 degrees opposite the wire egress. Mark this before installation.
Step 6: How to Set Up Your 100TECH Gauge (Backlight and Signal Mode)
If you have a 100TECH U-Type fuel/water gauge, you can customize it.
Backlight Color Setup:
Press the Mode button to cycle through colors: Red (default) → Green → Blue → White → Yellow → Yellow-green → Orange → Purple → Auto-circulation
Auto-circulation mode:
Backlight stays on → turns off for 2 seconds → then changes color every 1 minute automatically.
Input Signal Mode Setup (Important for compatibility):
Your 100TECH gauge can work with different ohm ranges. Here's how to set it:
1. Press and hold the Mode button for 3 seconds.
2. The backlight will flash. The needle will move to the "E" (Empty) position.
3. Press the button repeatedly to select your sender's ohm range:
- E position: 0–190 Ω (some universal senders)
- 1/4 position: 0–180 Ω (older European vehicles)
- 1/2 position: 10–180 Ω (common standard)
- 3/4 position: 240–33 Ω (Default for 100TECH senders)
- F position: 240–30 Ω (alternative 240-30 system)
Default setting is 240-33 ohms (3/4 position). This works with most 100TECH senders.
Step 7: When to Replace Your Fuel Sender Unit
If your sender fails the multimeter test, or if you see any of these signs:
- Corrosion on the metal housing
- Float is cracked or filled with fuel
- Float arm is bent or stuck
- Resistance reading jumps erratically
…then it's time for a new fuel sending unit.
What to look for in a replacement:
- 240-33 ohm output (compatible with most American boats, RVs, and trucks)
- Stainless steel construction (316 stainless for marine use)
- Length that matches your tank depth (4" to 32" available)
- 10mm resolution for stable readings (not the older 21mm type)
100TECH offers direct replacement senders that meet all these requirements.
Final Checklist: Fix Your Fuel Gauge in 5 Steps
Step 1: Check ground connections first
Step 2: Test sender with multimeter (240Ω empty / 33Ω full)
Step 3: Test gauge by grounding signal wire
Step 4: Inspect wiring for damage or loose connections
Step 5: Replace faulty sender or gauge
Still Having Problems? We Can Help
If you've gone through this guide and your fuel gauge is still not working correctly, contact us directly.
To help you as quickly as possible, please provide:
1. Tank depth or old sender length
2. Ohm range of your current system (if known)
3. Photos of your sender and gauge wiring if possible
We'll help you find the right fuel gauge sender unit for your truck, camper, or boat — guaranteed.
