100TECH Fuel and Water Level Sending Unit

100TECH Fuel and Water Level Sending Unit

1. How to identify my product to order a replacement?

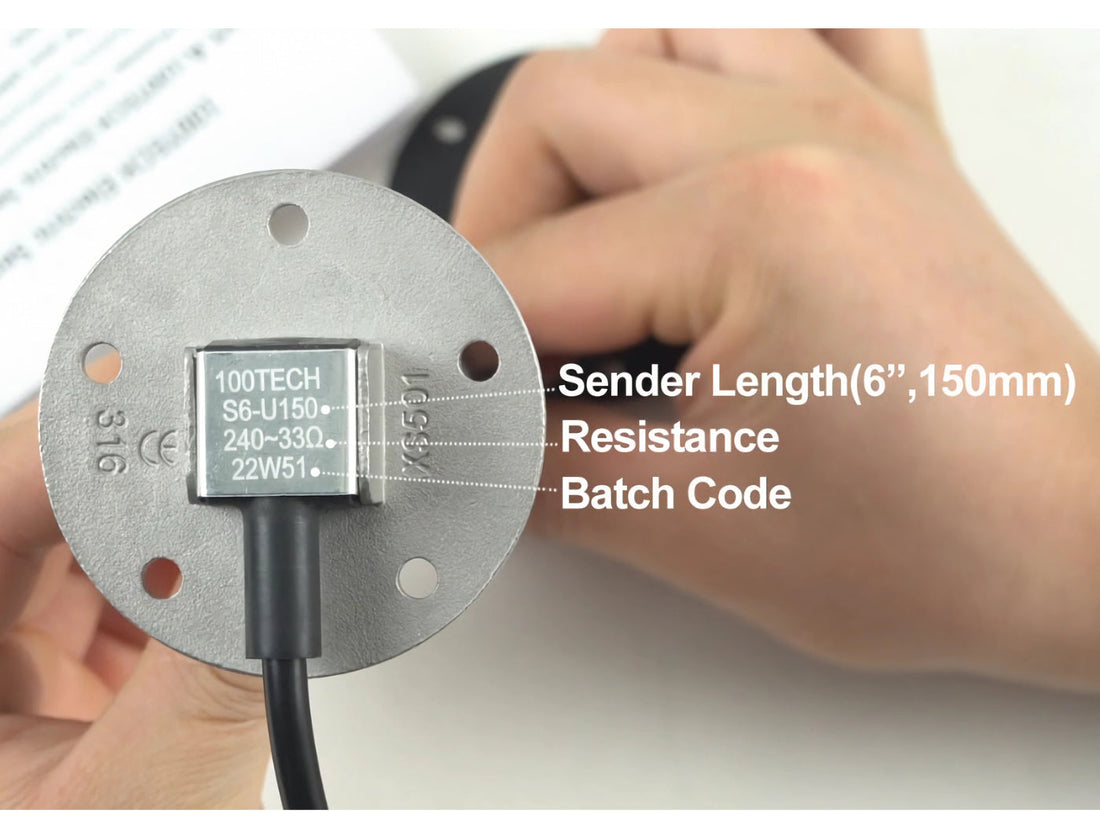

To identify your current 100TECH sending unit, please look at the number on the aluminum cap at the top of the unit (where the wires are)



 2. The 100TECH standard Fuel Level Sensor have two wires:

Blue wire connects to ground

Brown wire connects to the gauge.

Please contact us if your Fuel Sender has additional or alternate wire colors.



How can I do if I don’t have a 100TECH Fuel Sender and need to order a 100TECH replacement for my unit?

If you do not have a100TECH Fuel Sender and need to order  a 100TECH  replacement for your unit, please contact us the following information:

1. The depth of your tank

2. The depth of your current sender

3. Output/Operating ohms range.

4. Mounting style. (How the unit mounts to the tank)



What’s the material of 100TECH Fuel Sending Unit Stem?

The  Stem of 100TECH Sender Are Made From  316 Stainless Steel.The Benefit of using 316 Stainless Steel Include Its Corrosion Resistance And Lasting Durability For Marine Applications. You May Pay A Little More Upfront, But In The Long Run, You'll Save Money Since You Won't Have To Replace Your Sender As Frequently. You Can't Tell The Difference By Simply Looking At It. However, 304 Rusts Faster As It Has Less Nickel And No Molybdenum.



What Outputs Do You Offer For the Fuel Level Sender ?

We offer the following outputs for our sending units:

· Resistive (ohms) – American Standard: 240-33 and European Standard: 0-190ohms, 0-90ohms (readily available in US stock ).

· If you need 0-180ohms, 10-180ohms Fuel Senders, please contact 100TECH Sales Teams for pricing and lead times.



Q: What's the float material of 100TECH fuel sender?

A: The float is made of NBR material. The 100TECH fuel & water level sensor's NBR (Nitrile Rubber) float provides outstanding resistance to oils, heat, abrasion, and chemicals, ensuring both durability and elasticity.
