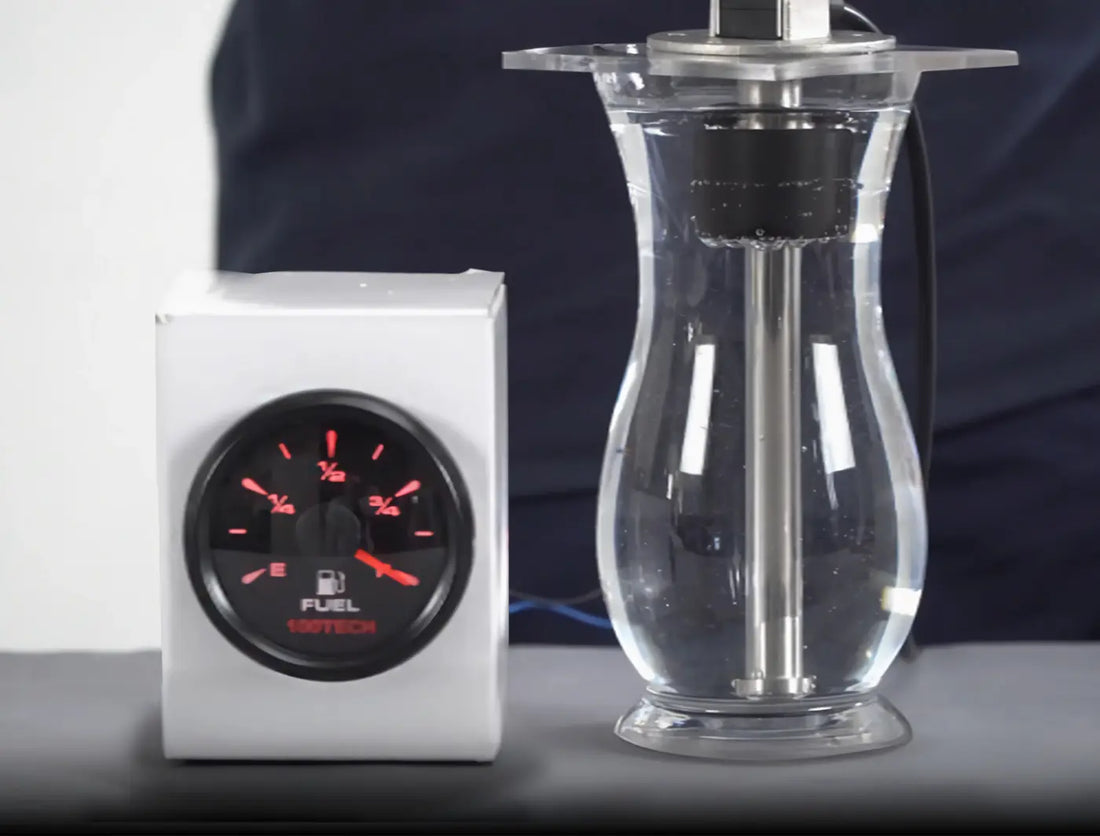

What Causes the Fuel Gauge to Sweep From Empty to Full ?
When you turn on your vehicle’s ignition, you may notice the fuel gauge needle sweeping from empty to full before settling at the correct fuel level. This is a normal operation, but have you ever wondered what makes it happen? How the Fuel Gauge Sender Works Inside the fuel tank, there is a fuel sender unit, which consists of: A float (attached to a lever arm) that moves up and down with the fuel level. A series of reed switches and fixed resistors (unlike older variable resistors, which were prone to wear and failure). A magnet inside the float that opens and closes each reed switch as it moves. Since reed switches are highly durable—often rated for billions of actuations—this design improves reliability compared to traditional variable resistors.
How the Signal Travels to the Gauge ? The sender is connected to the fuel gauge on the dashboard. Here’s how the process works: The float moves as fuel levels change. The magnet triggers different reed switches, altering the electrical resistance in the circuit. This signal is sent to the gauge, which interprets the resistance and moves the needle accordingly. When you start the car, the gauge performs a self-test sweep—moving from empty to full—to confirm the system is working. Once the signal stabilizes, the needle settles at the actual fuel level. Why the Sweep Happens The continuous sweep is part of the gauge’s initialization process. Since the sender provides real-time data, the gauge must: Check for signal continuity (ensuring no wiring issues). Confirm proper resistance values (to avoid false readings). Display the correct fuel level after the system verifies everything is functioning.
Conclusion The fuel gauge sweep is a normal operation caused by the interaction between the sender (reed switches, resistors, and float) and the gauge. Unlike older systems with wear-prone variable resistors, modern fuel senders use magnetic reed switches for long-lasting accuracy. So, the next time you see your fuel gauge sweep from empty to full, remember—it’s just the system making sure you get a reliable fuel reading!
