Product Description
The 100TECH Reed Switch Fuel Sending Unit is designed for anyone looking for a simple, reliable solution to measure fuel and gasoline levels in their tank.
Why Choose 100TECH Fuel Sender?
- Made with OKI Reed Switch (Imported from Japan) — more reliable and durable
- Resolution of 10mm for 4", 5", 5.5", 6", 7", 7.5" fuel senders — smooth, accurate readings
- Stem, Flange and mounting screws made from 316 Stainless Steel — corrosion resistant and long service life
Why Avoid Low-Quality Fuel Senders?
- 21mm resolution senders drop steeply to Empty — tank looks 1/4 full when it's actually at 1/8
- 304 stainless steel rusts faster due to less nickel and no molybdenum
100TECH Stainless Steel Fuel tank Sending Unit is Made With OKI Reed Switch(Imported from Japan). It's Easy to Install. A Perfect Match with All the Screw Holes Lining up the Unit Comes with 5pcs of Screws and 1pc of New Neoprene Gasket. It is the Direct Replacement for Arm Type Sensors or Original Wema Unit for Better Durability and Reliability.
The Substantial Flange can Seal the Tank Completely
The 100TECH Marine Fuel Sending Units are Widely Used in Marine, On-road, Off-road, Generator set, and Industrial Applications. The Electric Liquid Level Sending Unit Utilizes Reed Switch and Magnetic Field technology. In 100TECH Reed Switch Level Senders the Float is the Only Moving Part of the Sender, Thereby Minimizing Potential Mechanical Failures.
Material:Body: SUS 316 Stainless Steel.
Cable: PVC.
Float: NBR.
Mounting Methods: Standard SAE 5 hole pattern.
Protection Rank: IP67.
Output Signal: American Standard 240-33 ohms (240 ohms at empty , 33 ohms at full).
Resolution Range:
10mm: 4”,5”,6”,7”
21mm: 8”,8.5”,9”,9.5”,10”,10.5”,11”,11.5”,12”,12.5”,13”,13.5”,14”,15”,16”,
17”,18”,19”,20”,21”,22”,23”24”,25”,26”,27”,28”,29”,30”,31”32”
Operational Temperature: -40°F ~ +85°F (-40°C ~ +85°C).
Package Information:

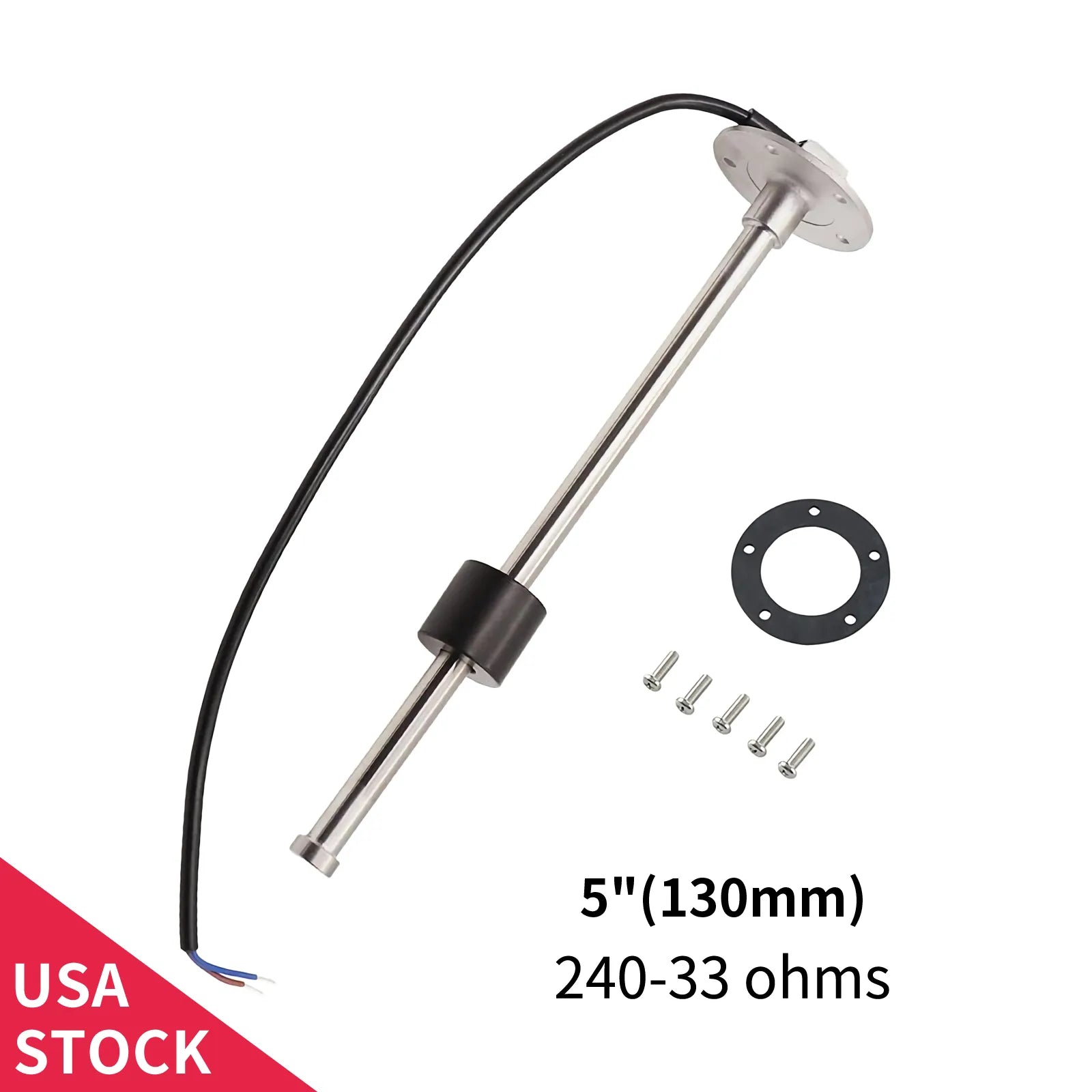

1 x 100TECH Fuel Sending Unit

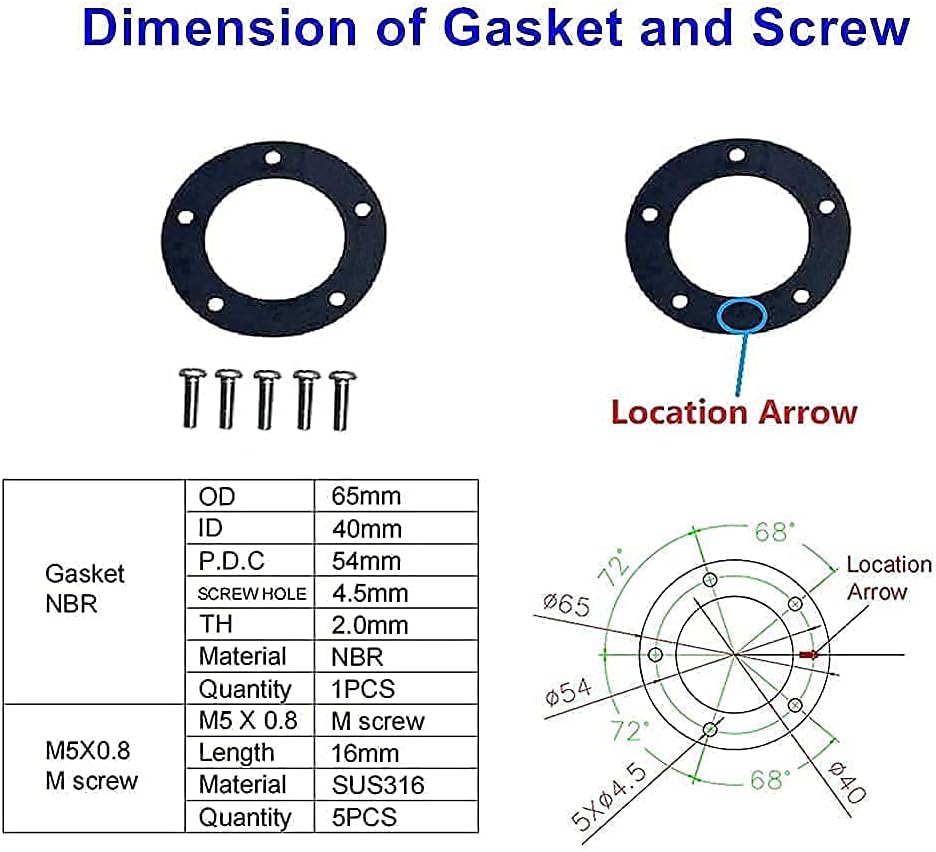

1 x Gasket
5 x M5*0.8 Length(16mm) Screws
1x Sending Unit Installation Guide
Note: Please kindly pay Attention to the Product Description, Especially the Resolution and Length (the Length of Sender Should be 1" less than the Depth of the Tank if tank is Plastic,
and 0.5" Less Than the Depth of the Tank if Tank is Metal) Before Placing the Order.
About this item
100TECH Stainless Steel Fuel Tank Sending Unit is Made With OKI Reed Switch(Imported from Japan). It is the Direct Replacement for Arm Type sender. The Advantage of This Fuel Level Sender Over Thick-Film Swim Arm Type Level Sender is the Reed Switch's Durability and Reliability. Additionally, No Moving Parts to Break. No Adjustment Needed for Tank.
The Fuel/Water Level Sensor with American standard output 240-33 ohms (240 ohms at empty, 33 ohms at full). If you Need Lengths Other than 4"-32", Please Contact us Directly for More Information.
[Easy to Install] The Fuel Level Sending Unit Comes with Gasket,Mounting Screws,Well-Written and Illustrated instructions; The Wiring Instructions are Straight Forward and Easy to follow.
SAE 5 hole Mounting Pattern, Heavy Duty 316 Stainless Steel and Rugged Construction. Wide Application: It Could Support Fuel Level Gauge and Water Level Gauge for Boat/Auto. 100Tech Guarantees with 1 Year Limited Warranty & Free Lifetime Technical Support Attention: To Allow the Fuel Sender not Hit the Bottom of the Tank, Please Measure from the Top of Your Tank to the Bottom on the Outside and Subtract 1 Inch the Length of Sender.
[The Size of Float] The Diameter of Float is 1.38"(35mm). If You Have to Drill the hole, Diameter 1.50"(38mm) Hole Would be Perfect.
