Product Description

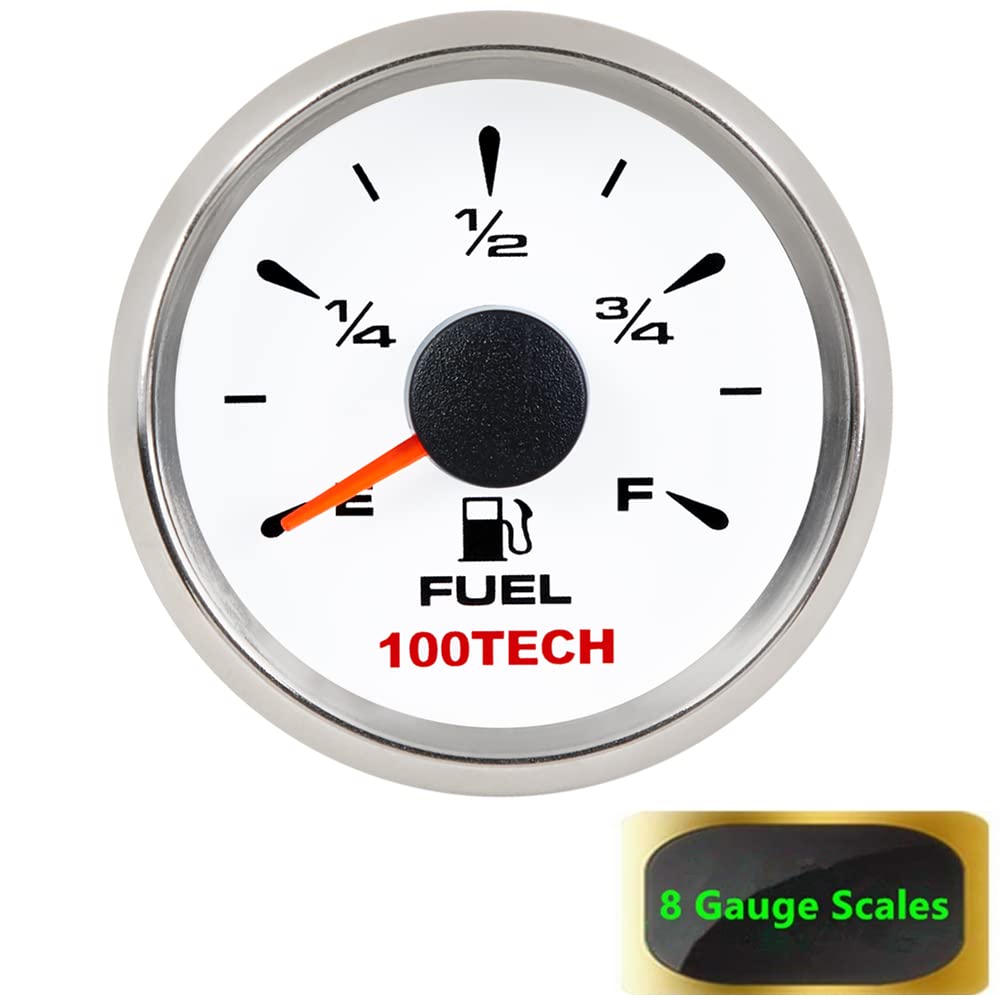

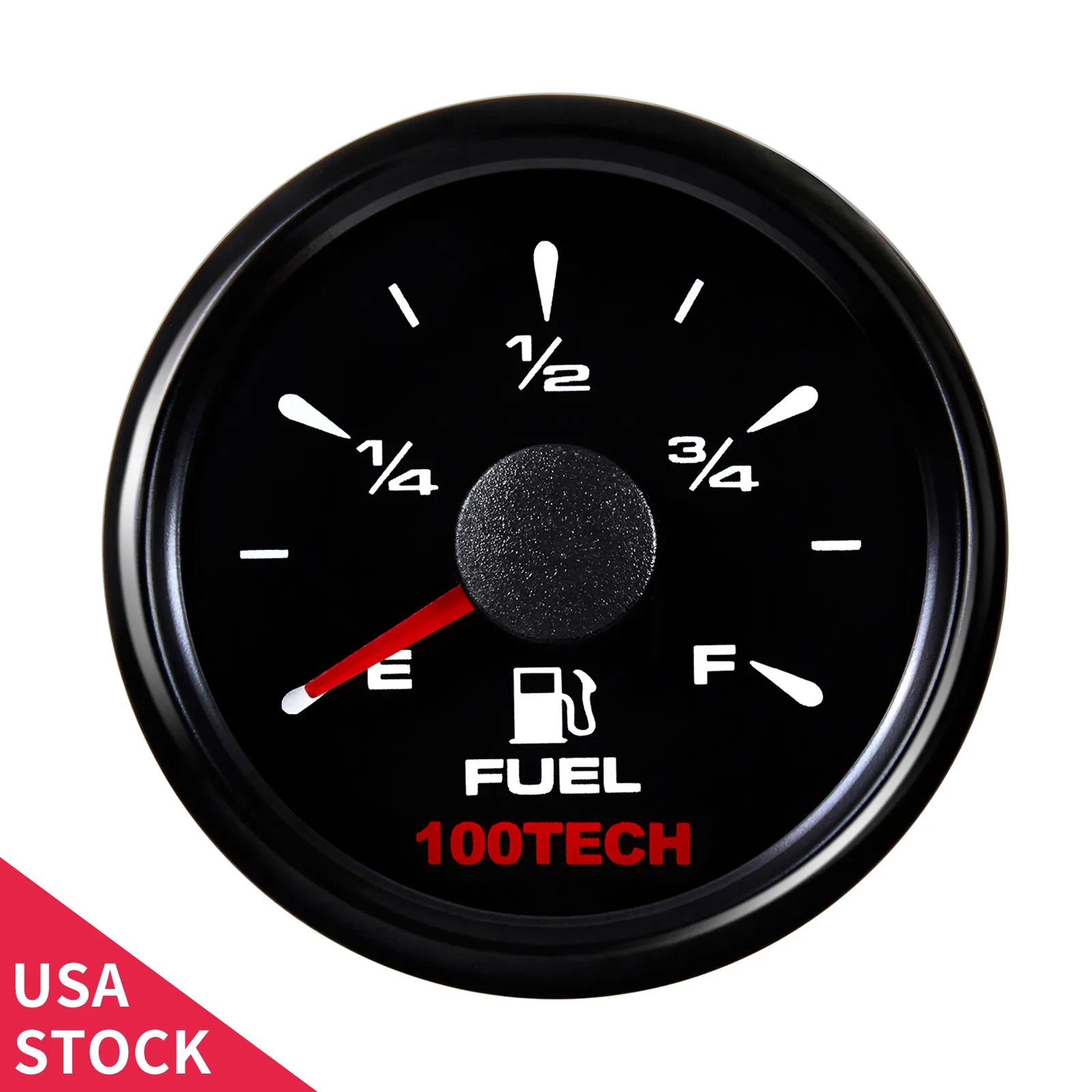

100TECH Fuel Level Gauge – Your Ultimate Custom Dashboard Upgrade. 5 Signal Modes + 8 Color Adjustment Modes. Designed for custom dash builders or stock gauge replacements, this 5 Signal Selectable Fuel Gauge effortlessly adapts to your vehicle's sending unit. Simply Press The Mode Button Briefly To Switch Between The 7 Single-Color Mode and The Color Cycling Mode of The Backlight Color. Includes Red(Default), Green, Blue, White, Yellow, Yellow Green, Orange, Purple. Choose The Backlight Color That Suits The Theme Style of The Dashboard According To Your Preference. This Will Enhance The Visual Effect And Make The Experience More Personalized. 100TECH Fuel Gauge Is Equipped With A 240° Sweep And Is Powered By Stepper Motor Technology. By Storing The 5 Common Configurations In The Factory Memory, The Naa Difficulty Of The Configuration Process Has Been Greatly Simplified The Vast Majority Of All Applications Are Covered. The Innovative Custom Calibration Mode Allows You To Choose From Five Signal Modes To Run In The Mode That Matches Your Needs. Press The Black Button On The Back And Hold it For 3 Seconds, or Until The Backlight Flashes, Then Release it to Put The Instrument in Programming Mode. Immediately Press The Button Again To Cycle Through Each Of The Available Calibration Options. Each Push Of The Button Moves The Needle On The Gauge From Empty To Full To Indicate Which Range Is Selected. This Programs The Gauge To Match The Type Of Sensor You Are Using. No Matter Your Application, There Simply isn't an Easier Solution For Fuel Level Monitoring Available On The Market.
Product Specifications：
-Fixing dimension: 52mm(2") or 2-1/16''
-Indicating Range: 0-100%
-Signal Adjustable : 0-190ohm, 240-33ohm(Default), 240-30ohm, 0-180ohm, 10-180ohm
-Working Voltage: 9-32V(12V/24V)
-Operation Mode: LCD Display, Stepper Motor
Package Includes:
1x Marine Fuel Gauge
1 x Wiring harness
1x Installation Instruction
Note:
1)This 100TECH Fuel Gauge Can Only Work With The Level Sender With The Corresponding Resistive Output ：240-33ohm(Default) 0-190ohm 240-30ohm 0-180ohm 10-180ohm
2)This Boat Fuel Gauge Can Not Work with the Fuel Sending Unit with Output Signal(0-30ohm, 0-90ohm,73-10 ohm etc.)
3)If You’re Unsure of The Type Sensor That Was Installed Into Boat/Vehicles.Please Use The Multi-meter To Measure The Resistance Range Of Your Sending Unit When Empty And Full (Example: Approx 8 And 184 ohms ).You Can Select The 10-180 ohm Range.Just Press And Hold The Mode Button For 3 Seconds To Put It Into Setup Mode
About this item
[More Accurate and Reliable] This Fuel Level Gauge Is Powered By Stepper Motor To Resist Vibration, Ensuring Stable Readings Even In Rough Seas Or High-Vibration Environments. Equipped With A 240° Sweep, Ensuring Eccurate Readings.
[Adjustable and Wide Application] This Fuel Gauge Suitable for Monitoring the Liquid Levels of Boats, Cars, Trucks, Motorcycles, Rvs Fuel Tanks. Works with fuel senders outputting 240-33 ohm 0-190 ohm 240-30 ohm 0-180 ohm 10-180 ohm, Application with Most American Standard Senders. Clear calibration instructions ensure effortless setup.
[Easy to install] Install diameter: Φ52mm or 2-1/16'', Indication range: E-F, Working voltage: 9-32v dc [fit 12V-24V Vehicle or Engine] The instruction is Easy to Follow
[8 Color Adjustment Cycle Modes] Press the mode button briefly to switch the backlight color. Includes Red(Default)-Green-Blue-White-Yellow-Yellow Green-Orange-Purple. Allow You to Match Your Factory Dashboard Lights or Add a Custom Style to the Interior of Your Vehicle.
[Durable and IP67 Waterproof] This fuel tank level gauge is equipped with a 316 stainless steel bezel, which is corrosion-resistant and has a long service life. It also features special anti-fog curved glass, which is durable, scratch-resistant and anti-fog, and achieves an IP67 level of waterproof and dustproof. 100TECH Guarantees with 1 Year Limited Warranty & Free Lifetime Technical Support.
