How to Choose the Right Fuel Sender Length for Your Boat, RV, or Truck
Date: April 16, 2026
Author: Tyler Brown
Introduction
You've bought a new fuel sender. You install it carefully. Then you fill up the tank — but the fuel gauge never reads "F". Or worse, the sender hits the bottom of the tank and bends.
This is one of the most common problems we hear from customers. And in most cases, the issue is simple: the fuel sender length is wrong.
Choosing the correct fuel sender length is the single most important step in ensuring accurate readings and a trouble-free installation. In this guide, I'll show you exactly how to measure your tank and select the right length — including the one critical rule that most beginners miss.
Whether you need a marine fuel sending unit for your boat, a replacement for your RV, or a boat fuel tank sending unit for a deep tank, this guide applies to all applications.
Part 1: The #1 Rule — Leave 1 Inch of Clearance
Here's the rule that will save you from most installation problems:
The length of your fuel sender should be 1 inch (25mm) LESS than the depth of your tank.
Why? Because your sender has a float retaining collar at the bottom. If the sender is too long, this collar will hit the bottom of the tank. This can:
- Bend or damage the sender tube
- Prevent the float from moving freely
- Cause inaccurate readings or a stuck fuel gauge
Example:
- Your tank depth = 12 inches
- Recommended fuel sender length = 11 inches (1 inch shorter)

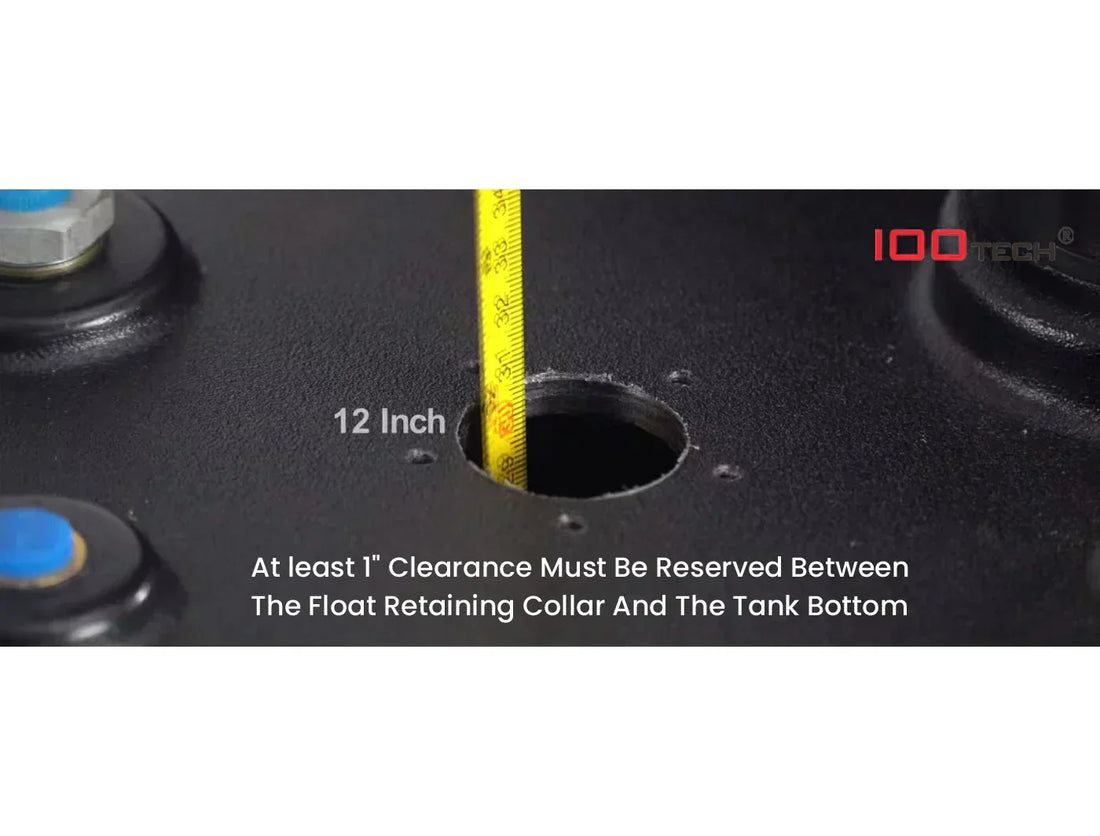

"At least 1 inch clearance must be reserved between the float retaining collar and the tank bottom." — 100TECH Installation Guide
This 1-inch clearance ensures your float can move up and down freely without hitting anything. This is especially important for a marine fuel sending unit where constant vibration from waves can worsen any installation issue.
Part 2: How to Measure Your Tank Depth Correctly
Before you can choose a length, you need an accurate measurement. Here's the right way to do it:
Step 1: Locate the mounting hole
Find the existing sending unit mounting hole on the top of your fuel tank. This is usually a 5-hole SAE standard flange.
Step 2: Measure straight down
Use a tape measure or a clean wooden dowel. Insert it straight down through the mounting hole until it touches the bottom of the tank.
Step 3: Read the measurement
Mark the depth at the top of the mounting hole. This is your total tank depth.
Step 4: Subtract 1 inch
Take your total tank depth and subtract 1 inch (25mm). This is the sender length you need.
Quick Formula:
Sender Length = Tank Depth - 1 inch
If you are selecting a boat fuel tank sending unit, double-check your measurement — boat tanks often have irregular shapes or baffles that can affect fitment.
Part 3: 100TECH Fuel Sender Length Options
100TECH offers a wide range of fuel sender lengths — from as short as 4 inches to as long as 32 inches (and custom lengths up to 118 inches for special applications). Every marine fuel sending unit we make follows the same high-quality standards.
Here is our standard length chart:
| Tank Depth Range | Recommended Fuel Sender Length | Resolution |
|---|---|---|
| 4.35" - 5" (110-125mm) | 4" (100mm) | 10mm |
| 5.5" - 6.1" (140-155mm) | 5" (130mm) | 10mm |
| 6.3" - 7" (160-178mm) | 6" (150mm) | 10mm |
| 6.9" - 7.5" (175-190mm) | 6.5" (165mm) | 10mm |
| 7.5" - 8" (190-203mm) | 7" (180mm) | 10mm |
| 7.9" - 8.5" (200-215mm) | 7.5" (190mm) | 10mm |
| 8.3" - 9" (210-230mm) | 8" (200mm) | 21mm |
| 8.9" - 9.5" (225-240mm) | 8.5" (216mm) | 21mm |
| 9.5" - 10" (240-255mm) | 9" (230mm) | 21mm |
| 9.9" - 10.5" (250-265mm) | 9.5" (241mm) | 21mm |
| 10.3" - 10.8" (260-275mm) | 10" (250mm) | 21mm |
| 10.8" - 11.4" (275-290mm) | 10.5" (267mm) | 21mm |
| 11.4" - 12" (290-305mm) | 11" (280mm) | 21mm |
| 11.8" - 12.4" (300-315mm) | 11.5" (290mm) | 21mm |
| 12.3" - 13" (310-330mm) | 12" (300mm) | 21mm |
| 13" - 13.6" (330-345mm) | 12.5" (318mm) | 21mm |
| 13.4" - 14" (340-355mm) | 13" (330mm) | 21mm |
| 14" - 14.6" (355-370mm) | 13.5" (343mm) | 21mm |
| 14.6" - 15.4" (370-390mm) | 14" (360mm) | 21mm |
| 15.4" - 16" (390-410mm) | 15" (380mm) | 21mm |
| 16.5" - 17.3" (420-440mm) | 16" (410mm) | 21mm |
| 17.3" - 18.1" (440-460mm) | 17" (430mm) | 21mm |
| 18.5" - 19.3" (470-490mm) | 18" (460mm) | 21mm |
| 19.5" - 20" (490-510mm) | 19" (480mm) | 21mm |
| 20.5" - 21.25" (520-540mm) | 20" (508mm) | 21mm |
| 21.3" - 22.3" (540-565mm) | 21" (530mm) | 21mm |
| 22.5" - 23.4" (570-595mm) | 22" (560mm) | 21mm |
| 23.5" - 24.4" (595-620mm) | 23" (584mm) | 21mm |
| 24.4" - 25.6" (620-650mm) | 24" (610mm) | 21mm |
| 25.6" - 26.6" (650-675mm) | 25" (635mm) | 21mm |
| 26.6" - 27.5" (675-700mm) | 26" (660mm) | 21mm |
| 27.5" - 28.5" (700-725mm) | 27" (686mm) | 21mm |
| 28.5" - 29.5" (725-750mm) | 28" (711mm) | 21mm |
| 29.5" - 30.5" (750-775mm) | 29" (737mm) | 21mm |
| 30.5" - 31.5" (775-800mm) | 30" (762mm) | 21mm |
| 31.5" - 32.5" (800-825mm) | 31" (787mm) | 21mm |
| 32.5" - 33.5" (825-850mm) | 32" (813mm) | 21mm |
Need a longer sender? We offer custom lengths up to 118 inches (3 meters) for deep industrial tanks, large yachts, and special applications. Whether you need a standard fuel sender or a custom marine fuel sending unit, contact us for a quote.
Part 4: Important Note About Float Diameter
Before you install your new fuel sender, you need to check your mounting hole size.
The float on 100TECH fuel sender units has a diameter of 1.38 inches (35mm). To install it properly, you need a mounting hole with a diameter of 1.5 inches (38mm).
- If your tank already has a standard SAE 5-hole flange, you're good to go
- If you need to drill a new hole, a 1-1/2 inch (38mm) hole is perfect
This is especially important when selecting a boat fuel tank sending unit — many boat tanks have non-standard mounting holes that may require modification.
Part 5: A Critical Compatibility Note
One more thing before you buy.
100TECH fuel sender units have a non-linear output. This means they are designed to work with standard fuel gauges that accept a non-linear signal.
Most OEM and aftermarket fuel gauges are designed for non-linear senders. However, if you are replacing a sender from a different brand, we recommend verifying compatibility first.
Your fuel gauge and sender must work together. A mismatch can cause:
- Incorrect readings on your fuel gauge
- A fuel gauge that never reads full or empty
- Erratic behavior from your fuel gauge
Not sure if your fuel gauge is compatible? Contact us with your fuel gauge model number, and we'll confirm for you.
Part 6: Common Mistakes to Avoid
| Mistake | Why It's a Problem | The Fix |
|---|---|---|
| Choosing a fuel sender that is too long | Hits the tank bottom, bends the tube, float can't move | Always leave 1 inch clearance |
| Choosing a fuel sender that is too short | Leaves fuel unreadable at the bottom | Use the formula: Tank Depth - 1 inch |
| Not measuring tank depth correctly | Measurement from outside the tank or at an angle | Measure straight down through the mounting hole |
| Forgetting about float clearance | Float hits baffles or tank walls | Check that your tank interior has room for 1.38 inch float |
| Buying a marine fuel sending unit without checking fuel gauge compatibility | Fuel gauge reads incorrectly or not at all | Verify ohm range and signal type before purchasing |
Conclusion
Choosing the right fuel sender length doesn't have to be complicated. Just remember the golden rule:
Fuel Sender Length = Tank Depth - 1 inch
Measure carefully. Check our length chart. And if you're ever unsure — just ask us.
Whether you need a standard fuel sender for your truck, a marine fuel sending unit for your boat, or a boat fuel tank sending unit for a deep tank, the same measurement principles apply.
Need help finding the right length for your tank?
Send us the following information:
1. Your tank depth (measured from the mounting hole to the bottom)
2. Your fuel gauge type (if you know it)
3. Your application (boat, RV, truck, etc.)
We'll respond with the exact fuel sender you need — guaranteed to fit.
