Product Description

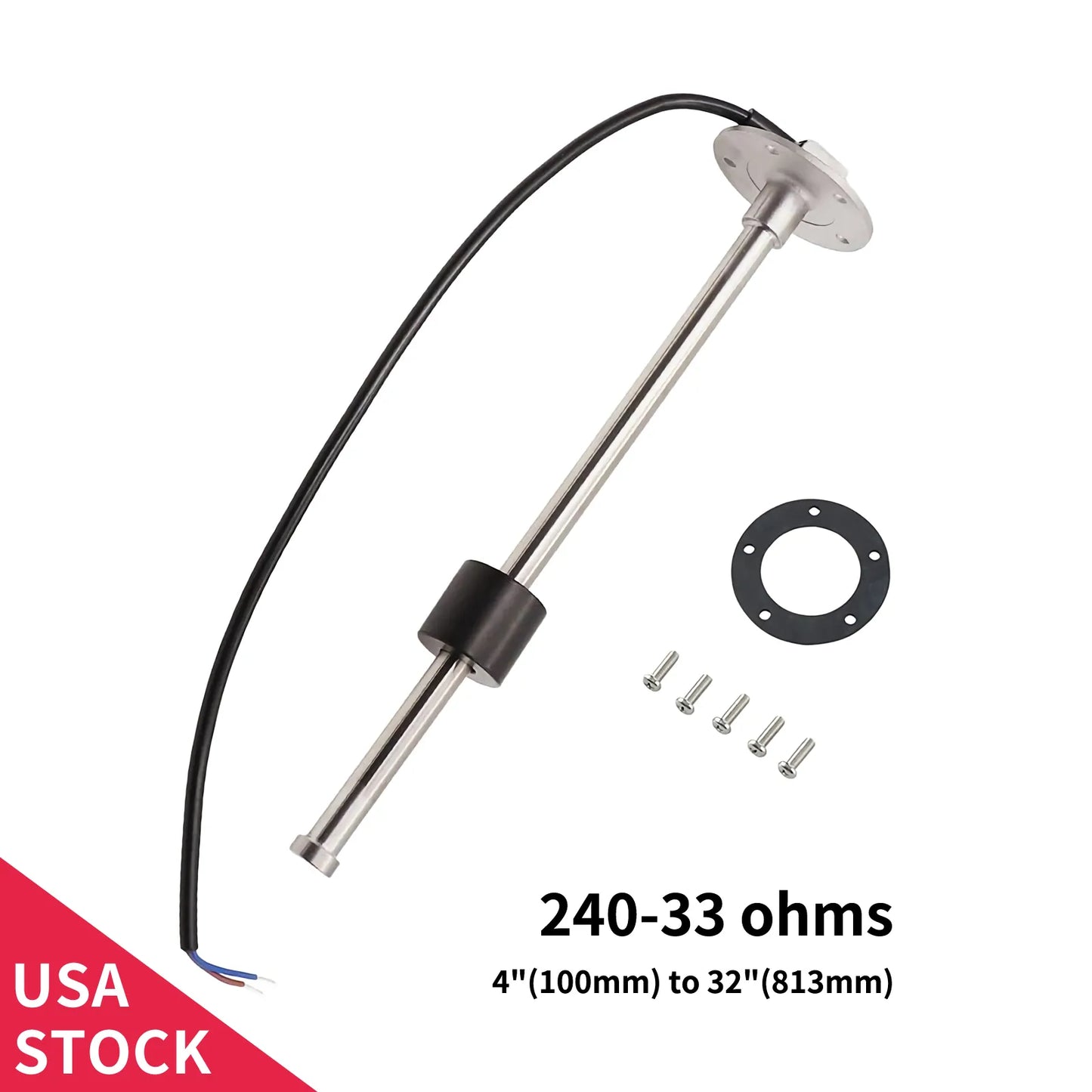

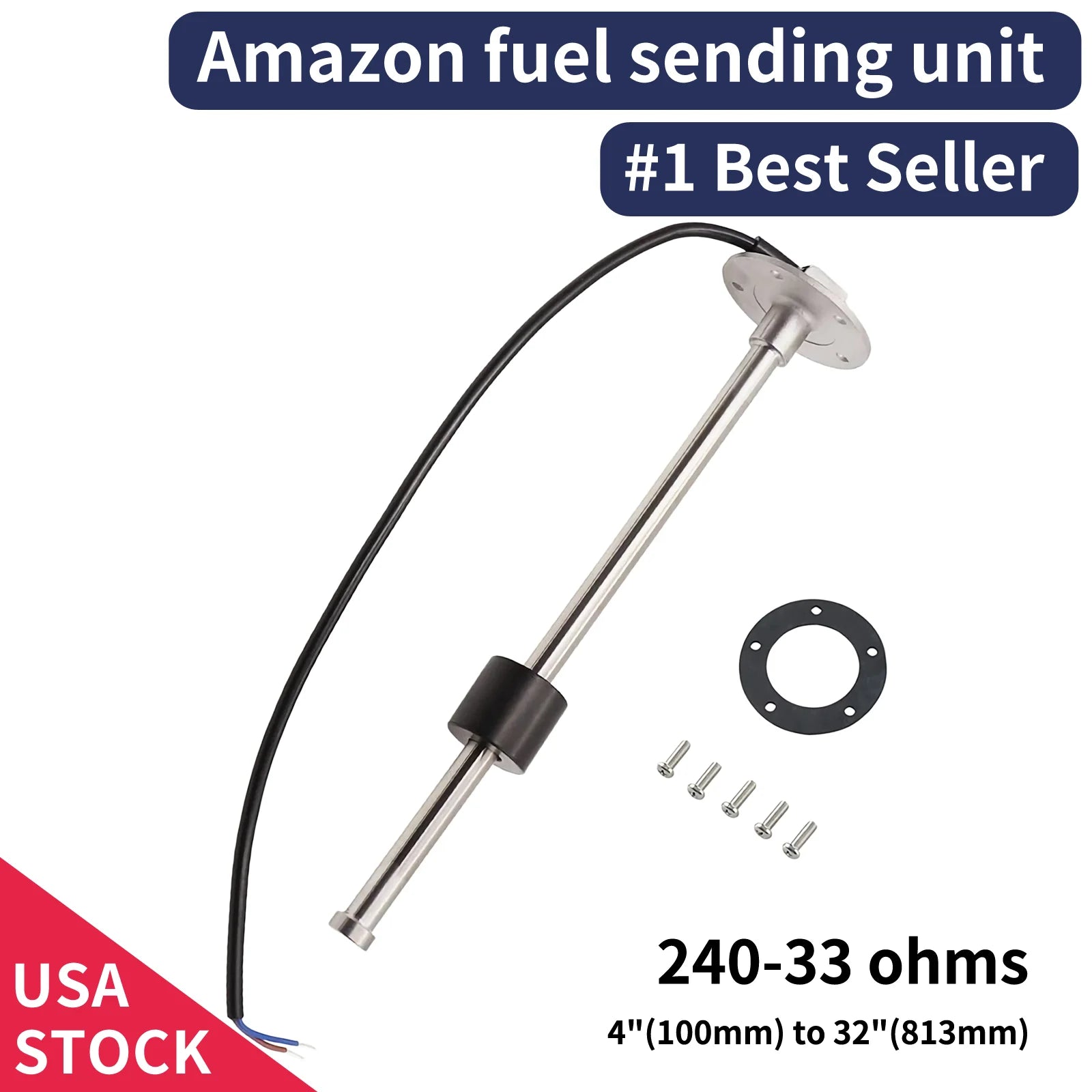

100TECH Stainless Steel Fuel Tank Sending Unit is Made With OKI Reed Switch (Imported from Japan). It's Easy to Install. A Perfect Match with All the Screw Holes Lining up the Unit Comes with 5pcs of Screws and 1pc of New Neoprene Gasket. It is the Direct Replacement for Arm Type Sensors or Original Wema Unit for Better Durability and Reliability. The Substantial Flange can Seal the Tank Completely.
The 100TECH Marine Fuel Sending Units are Widely Used in Marine, On-road, Off-road, Generator set, and Industrial Applications. The Electric Liquid Level Sending Unit Utilizes Reed Switch and Magnetic Field technology. In 100TECH Reed Switch Level Senders the Float is the Only Moving Part of the Sender, Thereby Minimizing Potential Mechanical Failures.
Material: Body: SUS 316 Stainless Steel
Cable: PVC
Float: NBR
Mounting Methods: Standard SAE 5 hole pattern
Protection Rank: IP65
Output Signal: American Standard 240-33 ohms (240 ohms at empty, 33 ohms at full)
Resolution Range:
10mm: 4", 5", 6", 7"
21mm: 8", 8.5", 9", 9.5", 10", 10.5", 11", 11.5", 12", 12.5", 13", 13.5", 14", 15", 16", 17", 18", 19", 20", 21", 22", 23", 24", 25", 26", 27", 28", 29", 30", 31", 32"
Operational Temperature: -40°F to +85°F (-40°C to +85°C)
Package Information:
1 x 100TECH Fuel Sending Unit, 1 x Gasket, 5 x M5*0.8 Length(16mm) Screws, 1 x Sending Unit Installation Guide.
Note: Please pay attention to the Resolution and Length (the Length of the Fuel Sender should be 1" less than the Depth of the Tank if the tank is Plastic, and 0.5" less than the Depth of the Tank if the Tank is Metal) before placing the order.
About this item
100TECH Stainless Steel Fuel Tank Sending Unit is Made With OKI Reed Switch (Imported from Japan). It is the Direct Replacement for Arm Type sender. The Advantage of This Fuel Level Sender Over Thick-Film Swim Arm Type Level Sender is the Reed Switch's Durability and Reliability. Additionally, No Moving Parts to Break. No Adjustment Needed for Tank.
The Fuel/Water Level Sensor with American standard output 240-33 ohms (240 ohms at empty, 33 ohms at full). If you Need Lengths Other than 4" to 32", Please Contact us Directly for More Information.
[Easy to Install] The Fuel Level Sending Unit Comes with Gasket, Mounting Screws, Well-Written and Illustrated instructions. The Wiring Instructions are Straight Forward and Easy to follow.
SAE 5 hole Mounting Pattern, Heavy Duty 316 Stainless Steel and Rugged Construction. Wide Application: This fuel sender supports Fuel Level Gauge and Water Level Gauge for Boat, Auto, RV, and Truck.
100TECH Guarantees with 1 Year Limited Warranty & Free Lifetime Technical Support. Attention: To Allow the Fuel Sender not to Hit the Bottom of the Tank, Please Measure from the Top of Your Tank to the Bottom on the Outside and Subtract 1 Inch from the Length of the Fuel Sender.
[The Size of Float] The Diameter of Float is 1.38"(35mm). If You Have to Drill the hole, a Diameter 1.50"(38mm) Hole Would be Perfect.
