Product Description
100TECH Reed Switch Fuel Sending Unit is Designed For the One Who Are looking for A Simple Solution To Measure The Amount of Fuel/Gasoline Level In The Tank.
There are So many different Senders on Amazon, What’s The Features and Benefits of 100TECH’s Sending Units ?
1. 100TECH Fuel Sender is Made With OKI Reed Switch(Imported from Japan),More Reliable and Durable.
2. The Resolution of 100TECH 4”,5”,5.5”,6”,7”,7.5 Marine Fuel Sending Unit is 10mm.
3. The Rod, Cork Gasket and Mounting Screws of 100TECH Fuel Tank Sending Unit is Made From 316 Stainless Steel to Ensure Reliable Performance And Long Service Life.
OThers:
1. The Resolution of Sender 4”,5”,5.5”,6”,7”,7.5 Is 21mm. Lack of Resolution,The Dropping To Empty Is Very Steep, The Tank Looks 1/4 Full When It Is About At 1/8.
2. The Body of Sender is Made with 304 Stainless Steel. 304 rusts Faster As It Has Less Nickel And No Molybdenum.
Operational Temperature: -40°F ~ +85°F (-40°C ~ +85°C).
Additional Information :
Package Information:

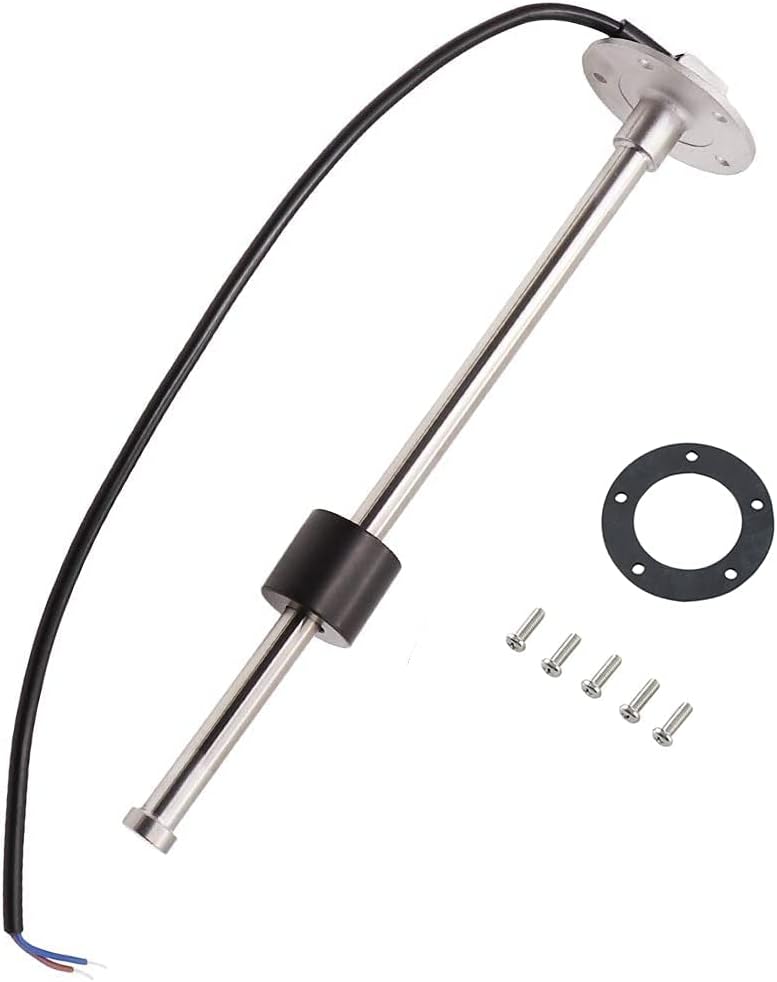

1 x 100TECH Fuel Sender
1 x Gasket
5 x M5*0.8 Length(16mm) Screws
1x Sending Unit Installation Guide
Note: Please kindly pay Attention to the Product Description, Especially the Resolution and Length (the Length of Sender Should be 1" less than the Depth of the Tank if tank is Plastic,
and 0.5" Less Than the Depth of the Tank if Tank is Metal) Before Placing the Order.
About this item
[Direct Replacement For Swingarm Sender, Smoother Readings When In Rougher Water] 100TECH Reed Switch Fuel Sender Unit is Designed Based on Magnetic Technology And Made With Series of High Quality Reed Switches & Fixed Resistors. It Does Not Require A Float On An Arm. Dramatically Reduces Slosh Fluctuations Over Swing-arm Units. No Moving Parts To Break,No Moving Parts To Break. It Moves Freely, Accurately Indicating The Fuel Level In the Tank.

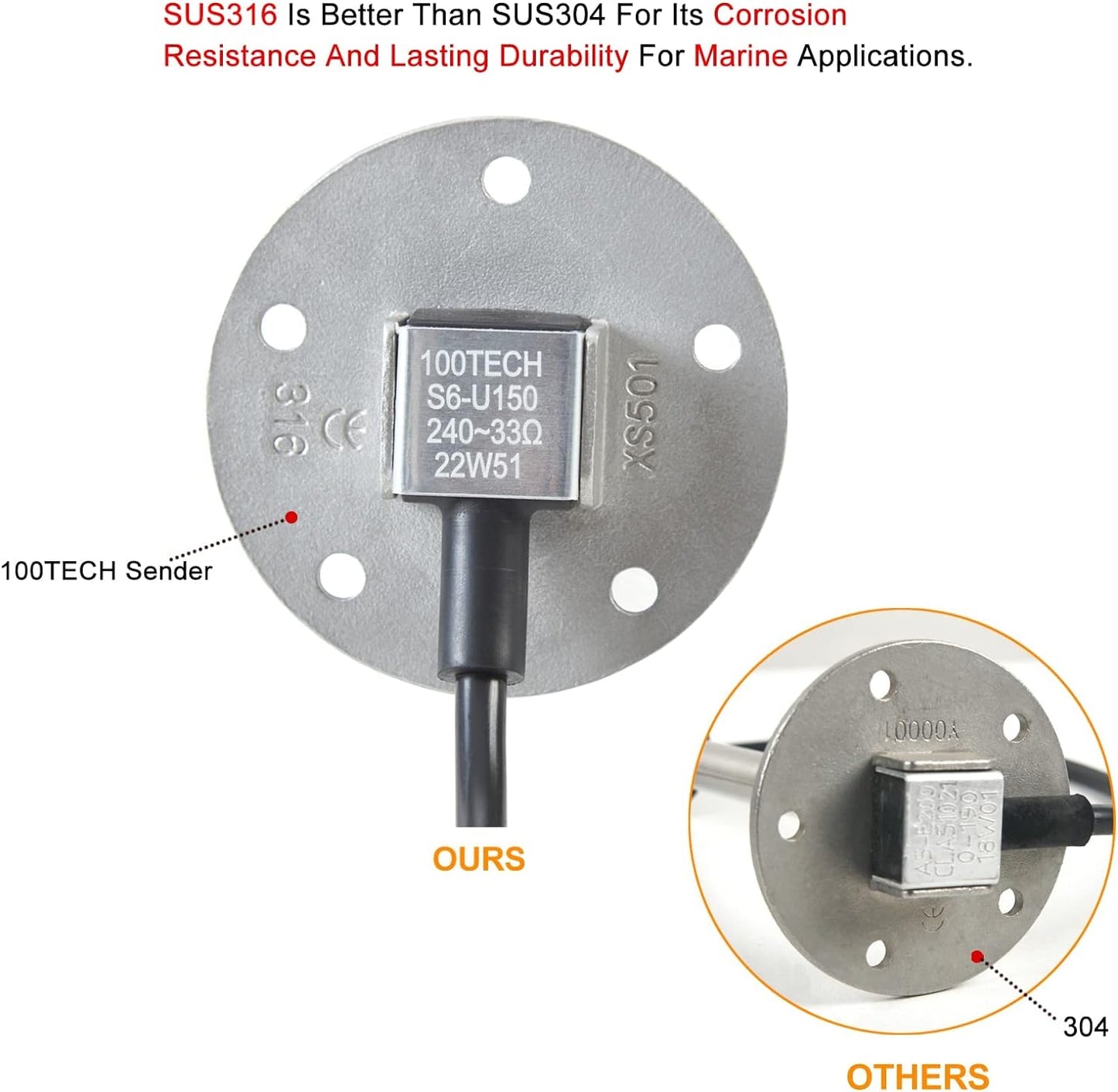

[Rugged Construction,Long Service Life] The Body of 100TECH Sender Are Made From 316 Stainless Steel. The Benefit of using 316 Stainless Steel Include Its Corrosion Resistance And Lasting Durability For Marine Applications. You May Pay A Little More Upfront, But In The Long Run, You'll Save Money Since You Won't Have To Replace Your Sender As Frequently. You Can't Tell The Difference By Simply Looking At It. However, 304 Rusts Faster As It Has Less Nickel And No Molybdenum.

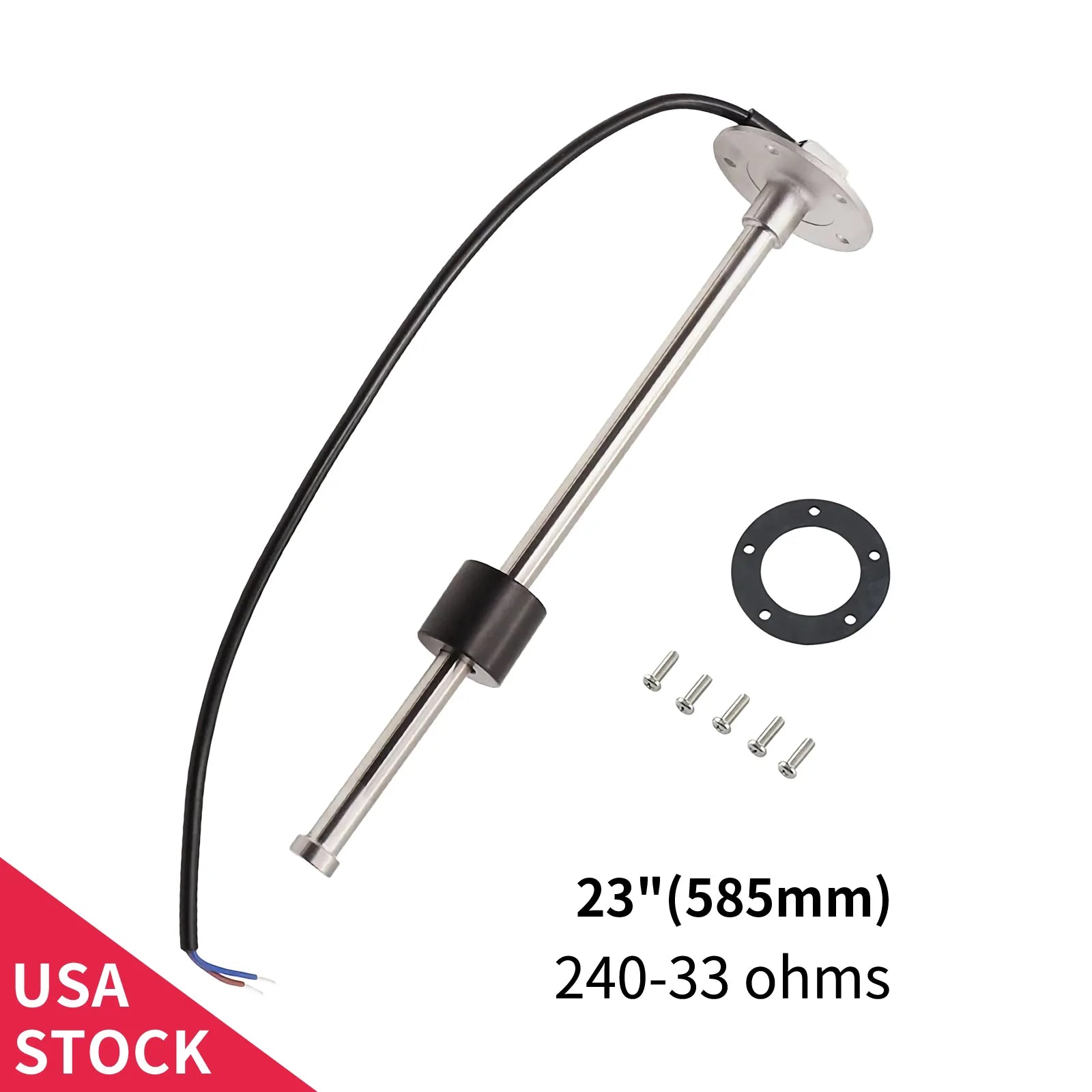

The Fuel/Water Level Sensor with American standard output 240-33 ohms (240 ohms at empty, 33 ohms at full). If you Need Lengths Other than 4"-24", Please Contact us Directly for More Information.

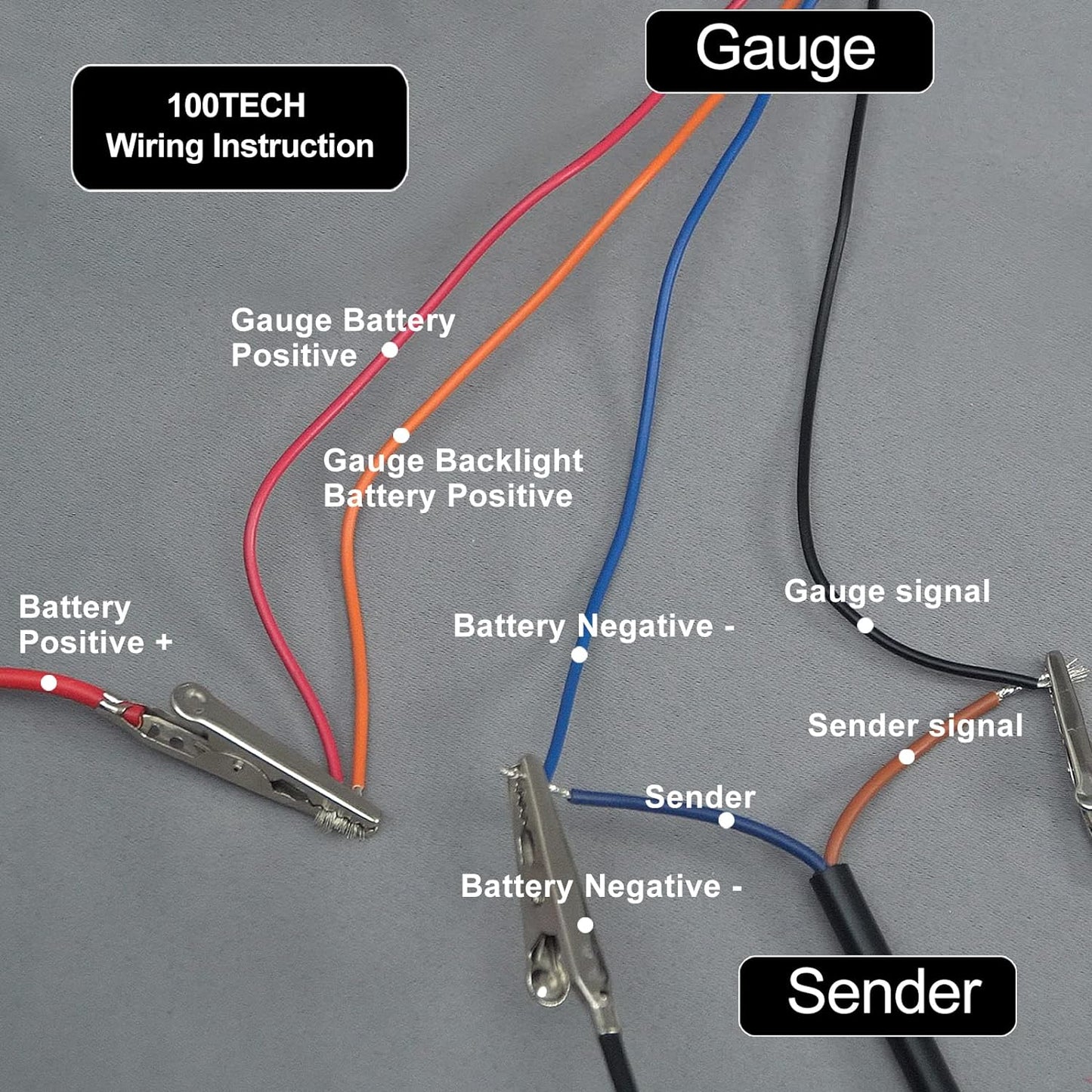

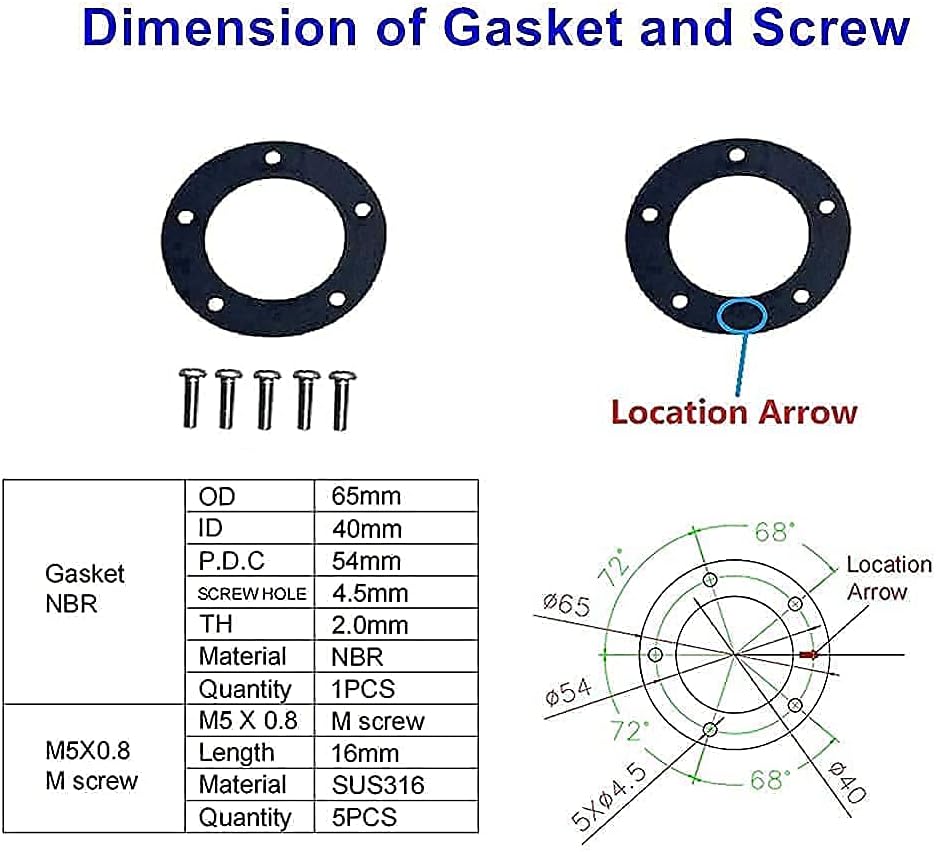

[Easy To Install,All Parts Included] SAE 5 hole Mounting Pattern. The Substantial Flange Can Seal The Tank Completely. The Fuel Sender Comes with 1pc of NBR Gasket(1pc), 5pcs of SUS 316 M5 Mounting Screws Well-written And Illustrated Instructions; The Wiring Instructions Are Straight Forward And Easy To Follow. Install Total In 15 Minutes!

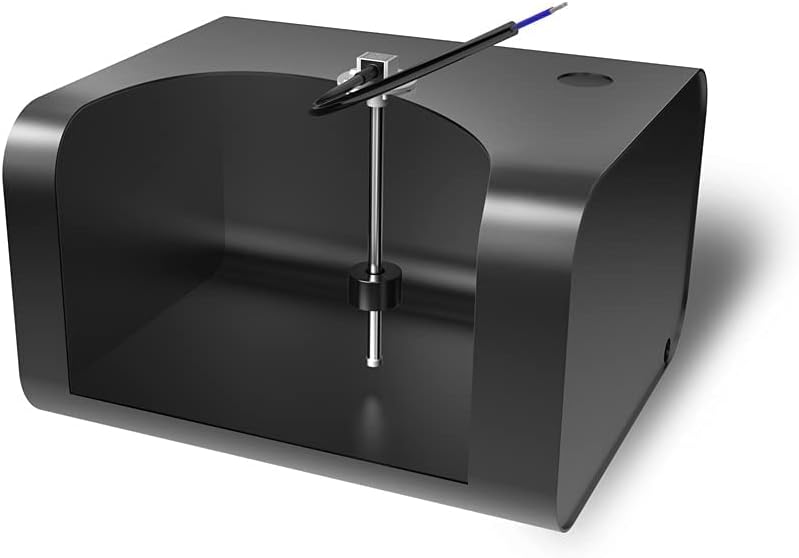

[Note] : ① To Allow The Sender Not Hit The Bottom Of The Tank, The Length Of Sender Should Be 1" Less Than The Depth Of The Tank. ②The Diameter of Float is 1.38"(35mm). If You Have to Drill the hole, Diameter 1-1/2"(38mm) Hole Would be Perfect.③100TECH Sender is with Non-Linear Output, It can only match with standard gauge with Non-Linear Signal.
