Product Description

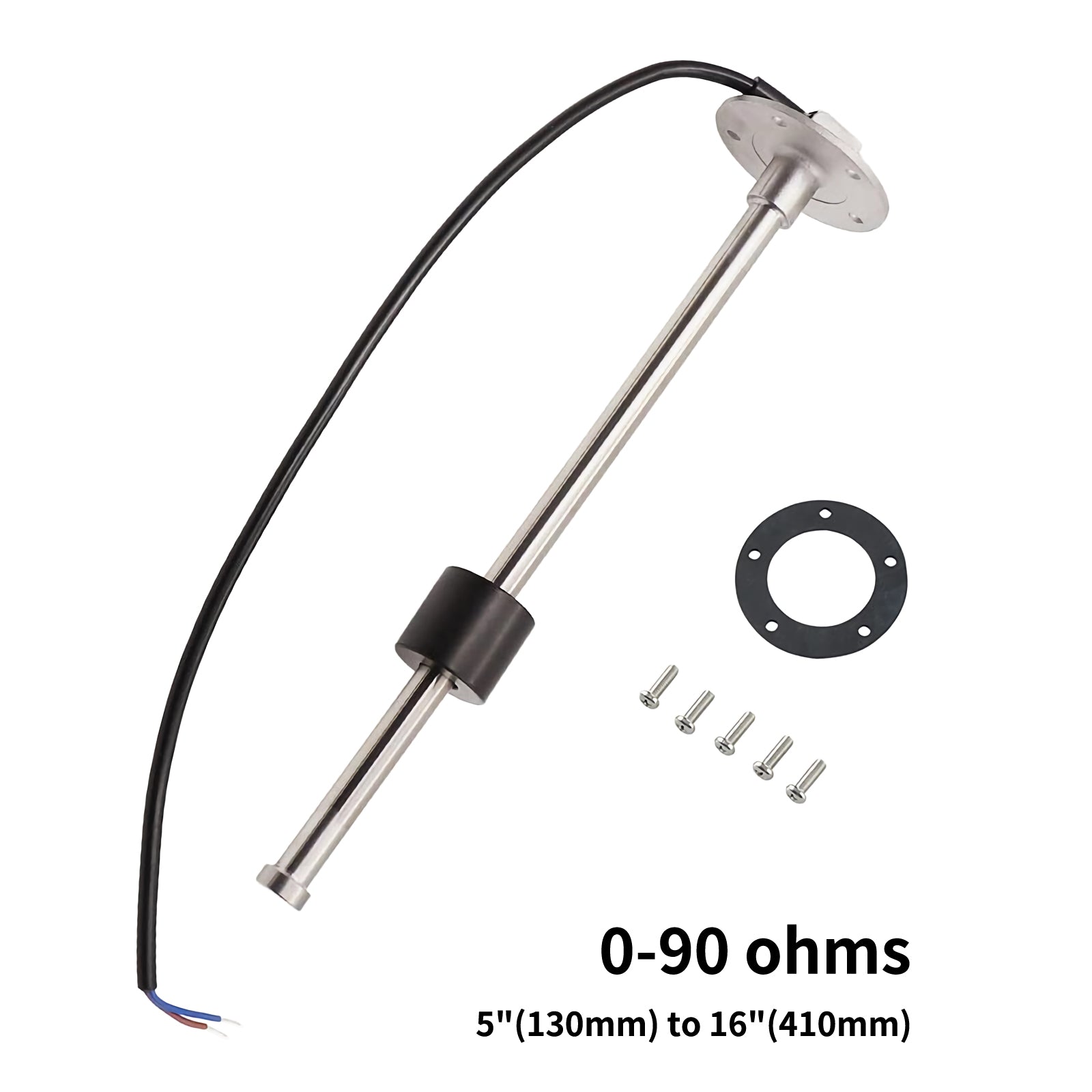

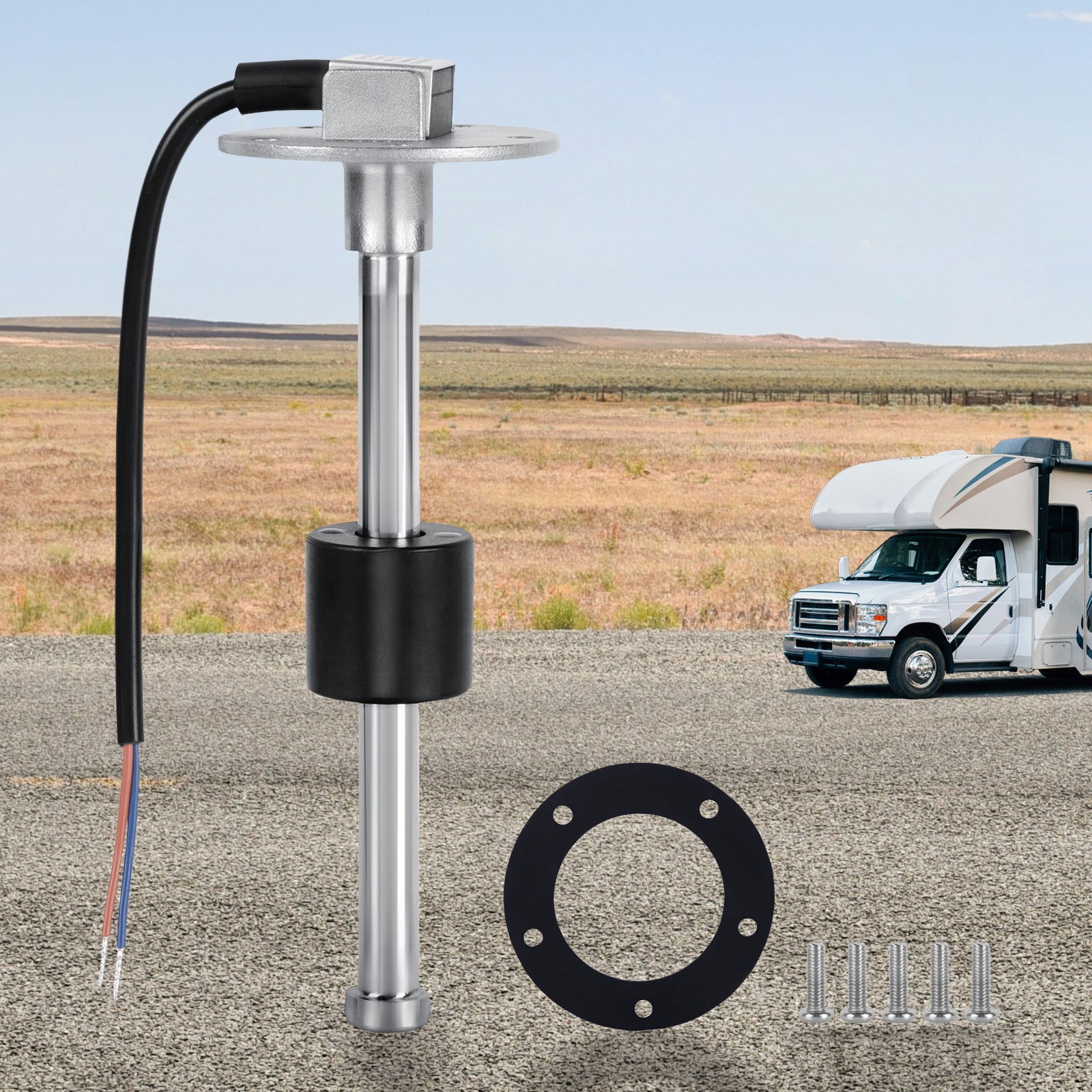

100TECH Stainless Steel Fule tank Sending Unit is Made With High quality Reed Switch. It's Easy to Install. A Perfect Match with All the Screw Holes Lining up the Unit Comes with 5pcs of Screws and 1pc of New Neoprene Gasket. It is the Direct Replacement for Arm Type Sensors or Original Wema Unit for Better Durability and Reliability.
The Substantial Flange can Seal the Tank Completely
The 100TECH Marine Fule Sending Units are Widely Used in Marine, On-road, Off-road, Generator set, and Industrial Applications. The Electric Liquid Level Sending Unit Utilizes Reed Switch and Magnetic Field technology. In 100TECH Reed Switch Level Senders the Float is the Only Moving Part of the Sender, Thereby Minimizing Potential Mechanical Failures.
Material:Body: SUS 316 Stainless Steel.
Cable: PVC.
Float: NBR.
Mounting Methods: Standard SAE 5 hole pattern.
Protection Rank: IP67.
Output Signal: 0-90 ohms (0 ohm at empty , 90 ohms at full).
Resolution Range:
10mm:5”,6”,7”,
21mm: 8”,9”,10”,11”,12”,13”,14”,16”
Operational Temperature: -40°F ~ +85°F (-40°C ~ +85°C).
Package Information:
1 x 100TECH Fuel Sending Unit 1 x Gasket 5 x M5*0.8 Length(16mm) Screws 1x Sending Unit Installation Guide Note: Please kindly pay Attention to the Product Description, Especially the Resolution and Length (the Length of Sender Should be 1" less than the Depth of the Tank if tank is Plastic,
and 0.5" Less Than the Depth of the Tank if Tank is Metal) Before Placing the Order.
About this item
[ Direct Replacement For Swingarm Sender, Smoother Readings When In Rougher Water] 100TECH Reed Switch Fuel Sender Unit is Designed Based on Magnetic Technology And Made With Series of High Quality Reed Switches & Fixed Resistors. It Does Not Require A Float On An Arm. Dramatically Reduces Slosh Fluctuations Over Swing-arm Units. No Moving Parts To Break,No Moving Parts To Break. It Moves Freely, Accurately Indicating The Fuel Level In the Tank. • ［Rugged Construction,Long Service Life］The Body of 100TECH Sender Are Made From 316 Stainless Steel. The Benefit of using 316 Stainless Steel Include Its Corrosion Resistance And Lasting Durability For Marine Applications. You May Pay A Little More Upfront, But In The Long Run, You'll Save Money Since You Won't Have To Replace Your Sender As Frequently. You Can't Tell The Difference By Simply Looking At It. However, 304 Rusts Faster As It Has Less Nickel And No Molybdenum. • ［Easy To Install,All Parts Included］SAE 5 hole Mounting Pattern. The Substantial Flange Can Seal The Tank Completely. The Fuel Sender Comes with 1pc of NBR Gasket(1pc), 5pcs of SUS 316 M5 Mounting Screws Well-written And Illustrated Instructions; The Wiring Instructions Are Straight Forward And Easy To Follow. Install Total In 15 Minutes! • [Multi-Size] If you Need Lengths Other than 5"-16", Please Contact us Directly for More Information.The Fuel/Water Level Sensor with output 0-90 ohms (0 ohm at empty, 90 ohms at full).
