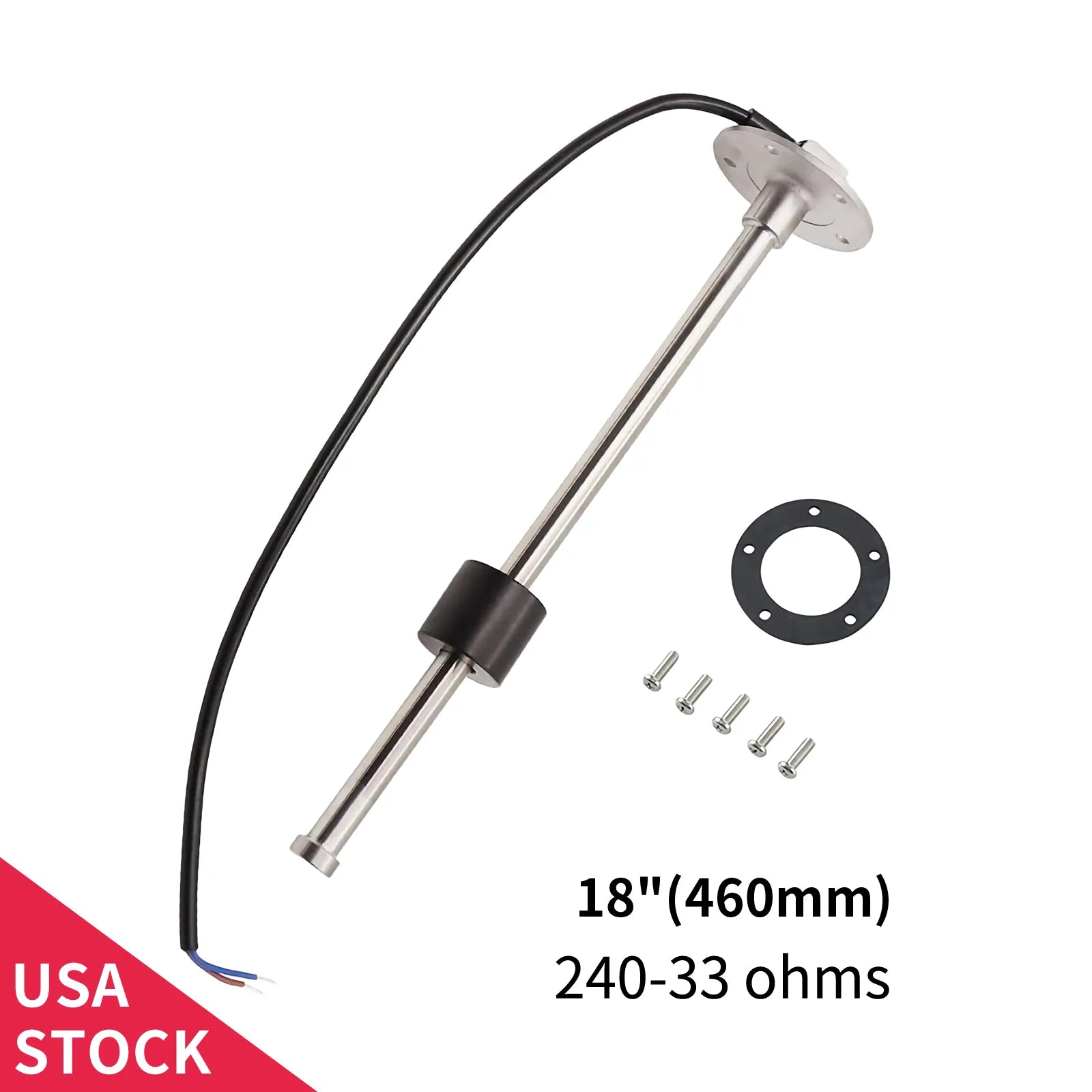

100TECH Stainless Steel Fule tank Sending Unit is Made With OKI Reed Switch(Imported from Japan). It's Easy to Install. A Perfect Match with All the Screw Holes Lining up the Unit Comes with 5pcs of Screws and 1pc of New Neoprene Gasket. It is the Direct Replacement for Arm Type Sensors or Original Wema Unit for Better Durability and Reliability.
The Substantial Flange can Seal the Tank Completely
The 100TECH Marine Fule Sending Units are Widely Used in Marine, On-road, Off-road, Generator set, and Industrial Applications. The Electric Liquid Level Sending Unit Utilizes Reed Switch and Magnetic Field technology. In 100TECH Reed Switch Level Senders the Float is the Only Moving Part of the Sender, Thereby Minimizing Potential Mechanical Failures.

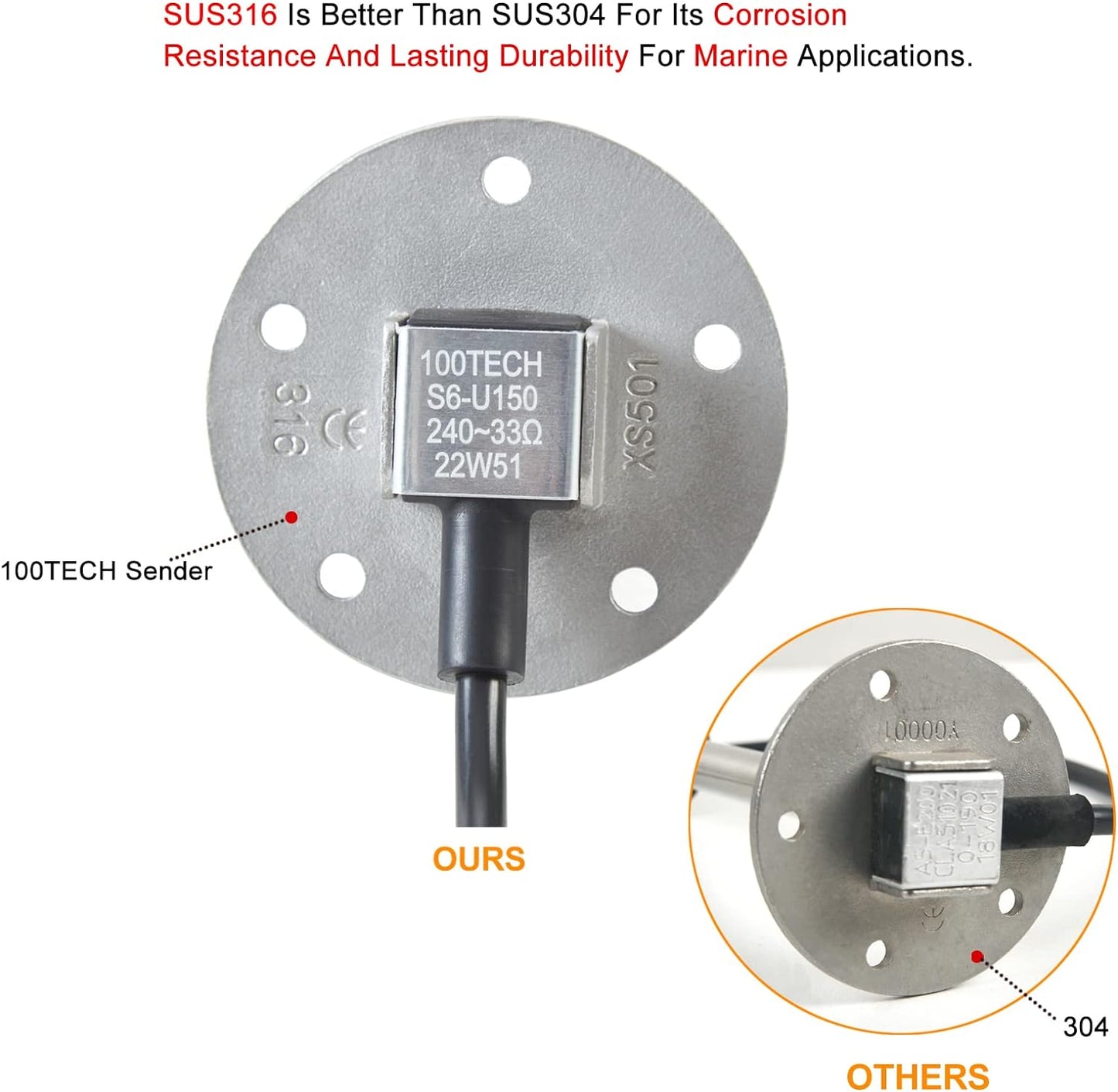

Material:Body: SUS 316 Stainless Steel.
Cable: PVC.
Float: NBR.
Mounting Methods: Standard SAE 5 hole pattern.
Protection Rank: IP65.
Output Signal: American Standard 240-33 ohms (240 ohms at empty , 33 ohms at full).

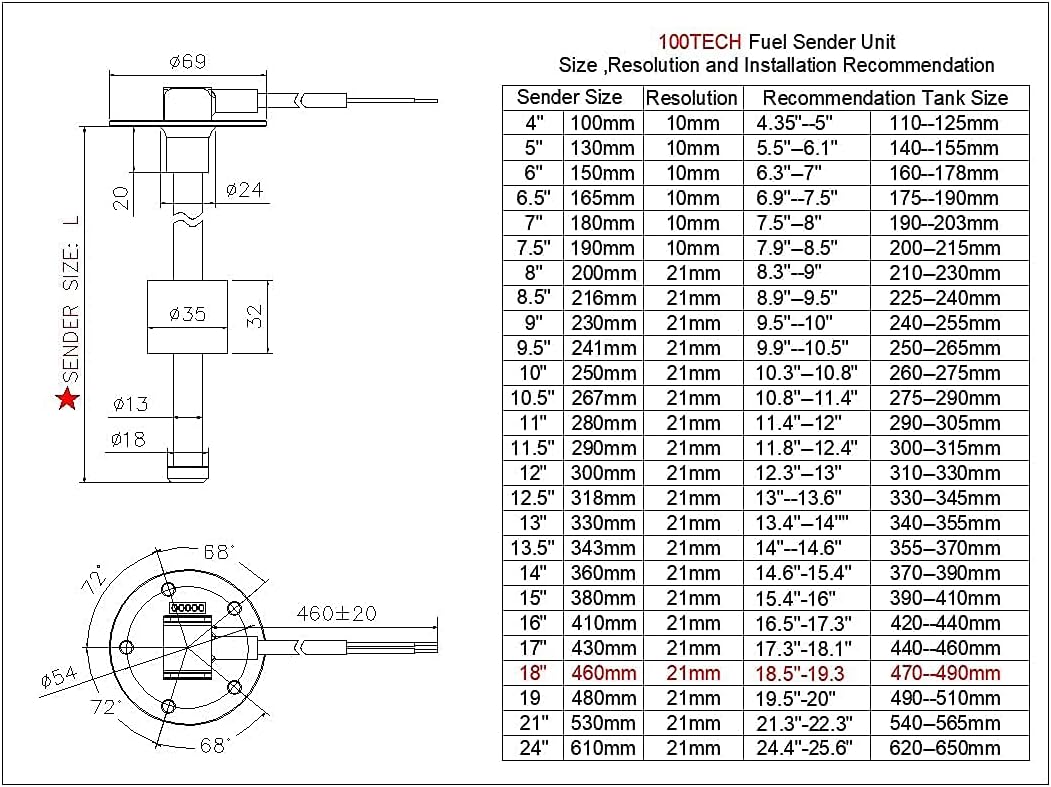

Resolution Range:
10mm: 4”,5”，6”,6.5”,7”,7.5”
21mm: 8”,8.5”,9”,9.5”,10”,10.5”,11”,11.5”,12”,12.5”,13”,13.5”,14”,15”,16”,17”,18”,19”,20”,21”,22”,23”24”,25”,26”,27”,28”,29”,30”,31”32”
Operational Temperature: -40°F ~ +85°F (-40°C ~ +85°C).
Package Information:

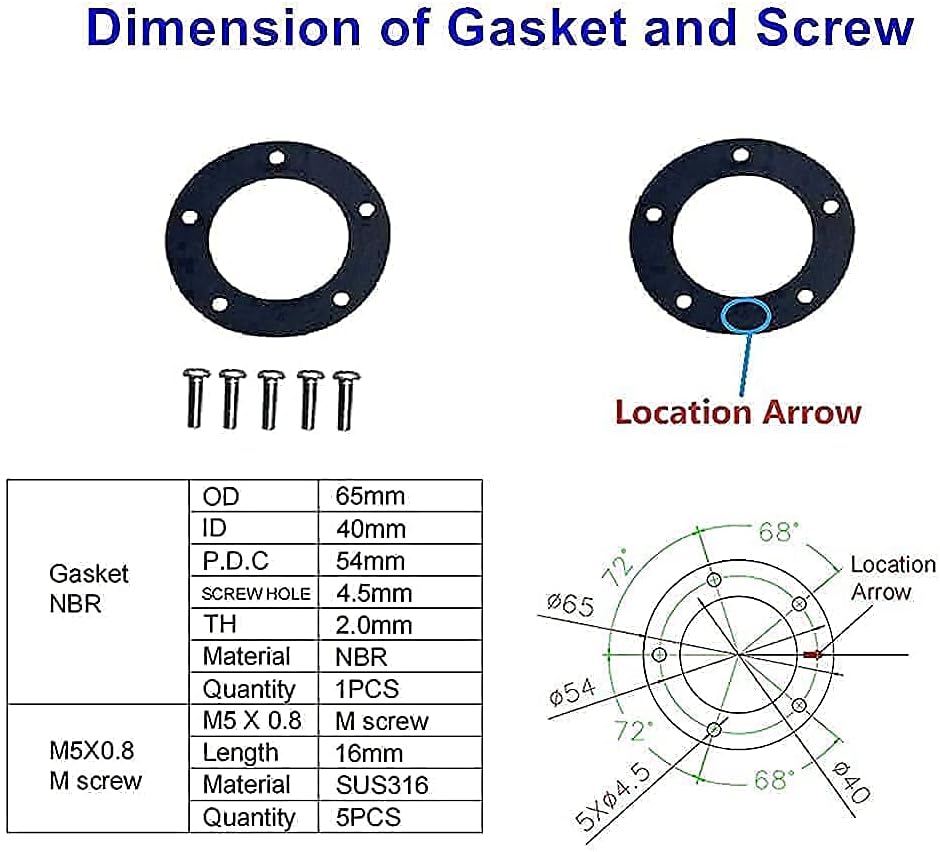

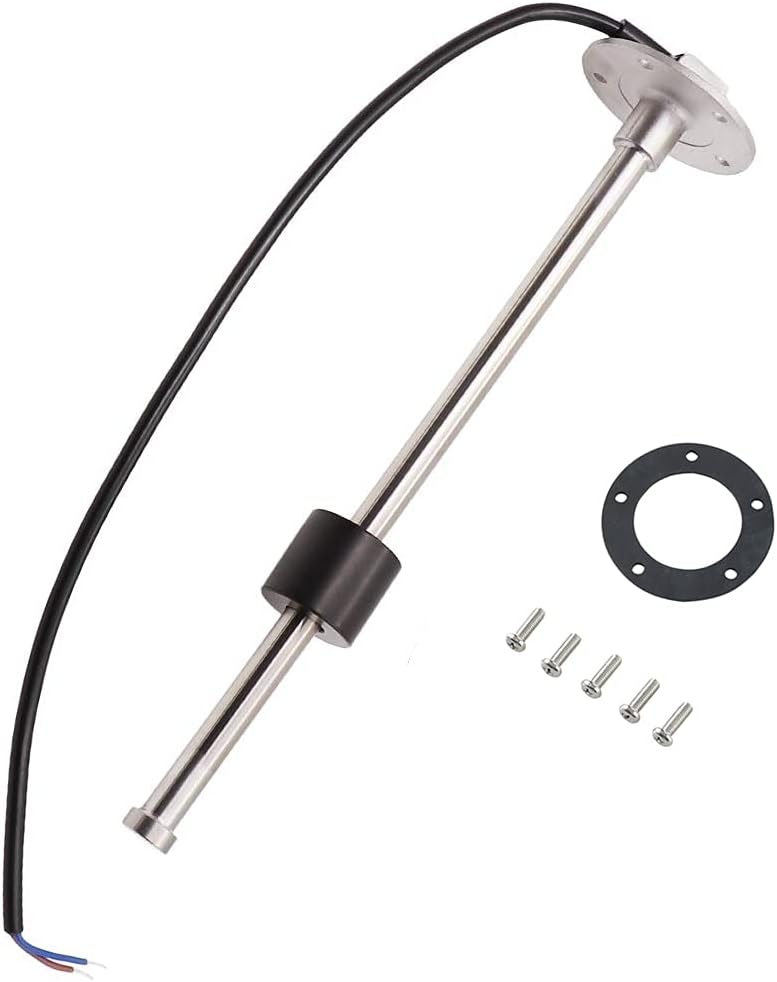

1 x 100TECH Fuel Sending Unit 1 x Gasket 5 x M5*0.8 Length(16mm) Screws 1x Sending Unit Installation Guide Note: Please kindly pay Attention to the Product Description, Especially the Resolution and Length (the Length of Sender Should be 1" less than the Depth of the Tank if tank is Plastic,
and 0.5" Less Than the Depth of the Tank if Tank is Metal) Before Placing the Order.
