【new】100TECH Fuel Gauge Marine Fuel Gauge Aftermarket Fuel Level Gauge Marine Automotive Replacement Gauge 240-33ohms 0-190ohms 240-30ohms 0-180ohms 10-180ohms for Boat Yacht Car Truck Motorcycle Vehicle Black

Product Description

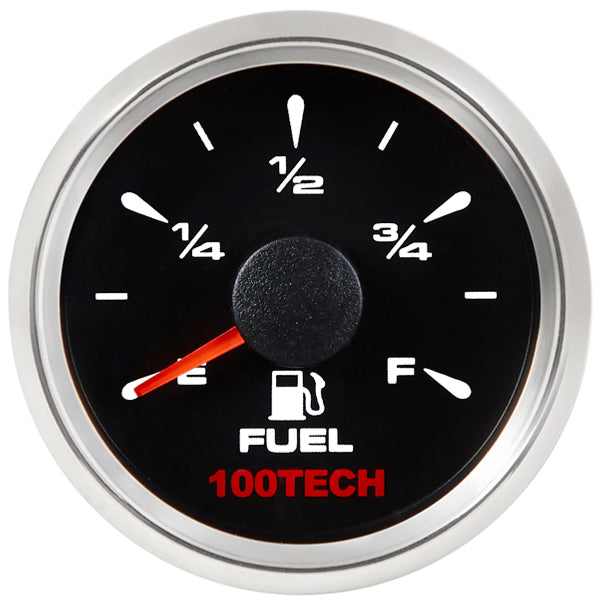

100TECH 8 Color Adustable Boat Fuel Gauge is Perfect for Anyone Building a Custom Dash or Replacing Their Stock Fuel Level Gauge. It's Installed by Connecting the Gauge Directly to your Vehicle's Fuel Level Sensor and Allows You to Closely Monitor the Level of Fuel in Your Boat/Vehicle
Product Specifications：
-Fixing dimension: 52mm(2") or 2-1/16''
-Indicating Range: 0-100%
-Signal Adjustable : 0-190ohms, 240-33ohms, 240-30ohms, 0-180ohms, 10-180ohms
-Working Voltage: 9-32V(12V/24V)
-Operation Mode: LCD display, Stepper Motor
Package Includes:
1x Marine Fuel Gauge
1 x Wiring harness
1x Installation Instruction
Note:

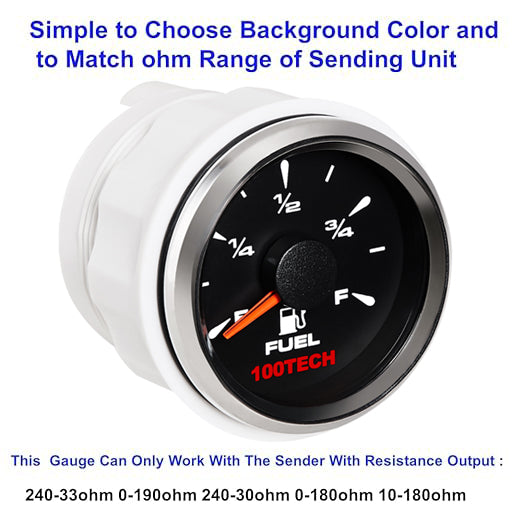

1)This 100TECH Fuel Gauge Can Only Work With The Level Sender With The Corresponding Resistive Output ：240-33ohms 0-190ohms 240-30ohms 0-180ohms 10-180ohms

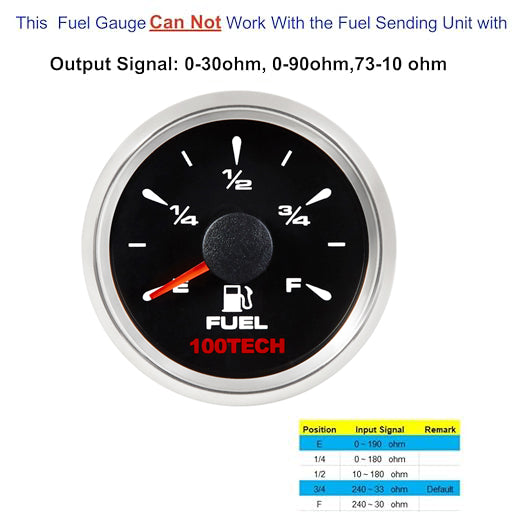

2)This Boat Fuel Gauge Can Not Work with the Fuel Sending Unit with Output Signal(0-30ohms, 0-90ohms,73-10 ohms etc.)
3)If You’re Unsure of The Type Sensor That Was Installed Into Boat/Vehicles.Please Use The Multi-meter To Measure The Resistance Range Of Your Sending Unit When Empty And Full (Example: Approx 8 And 184 ohmss ).You Can Select The 10-180 ohms Range.Just Press And Hold The Mode Button For 3 Seconds To Put It Into Setup Mode

About this item

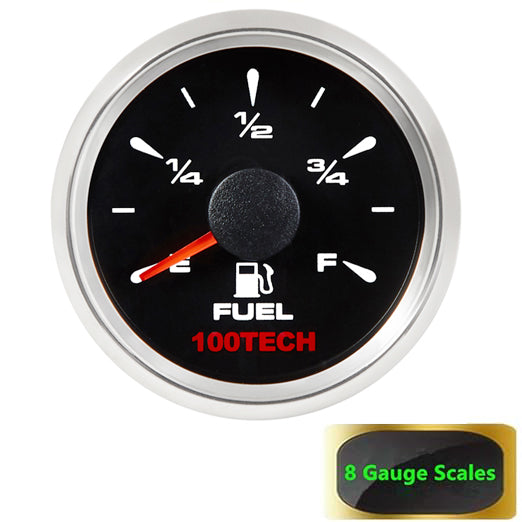

[More Accurate and Reliable] This Aftermarket Fuel Level Gauge Features a precision-engineered needle with anti-vibration technology, ensuring stable readings even in rough seas or high-vibration environments.The 8-level fine scale design significantly improves the reading accuracy and identification.
[Adjustable and Wide Application] This Fuel Gauge Suitable for Monitoring the Liquid Levels of Boats, Cars, Trucks, Motorcycles, Rvs Fuel Tanks. Works with fuel senders outputting 240-33 ohms 0-190 ohms 240-30 ohms 0-180 ohms 10-180 ohms, Application with Most American Standard Senders. Clear calibration instructions ensure effortless setup.

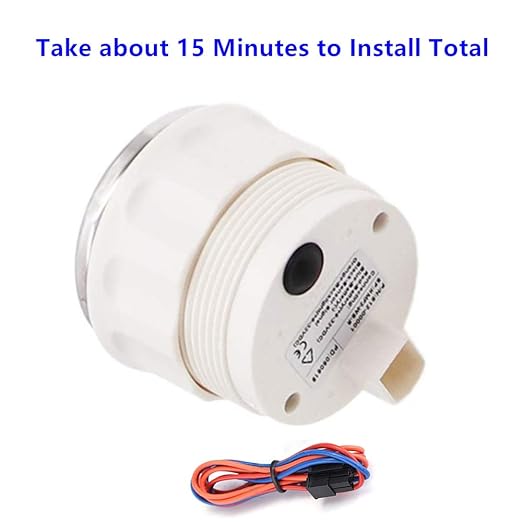

[Easy to install] Install diameter: Φ52mm or 2-1/16'', Indication range: E-F, Working voltage: 9-32v dc [fit 12V-24V Vehicle or Engine] The instruction is Easy to Follow
[8 Color Adjustment Cycle Modes] Press the mode button briefly to switch the backlight color. Includes Red(Default)-Green-Blue-White-Yellow-Yellow Green-Orange-Purple-automatic circulation. Allow You to Match Your Factory Dashboard Lights or Add a Custom Style to the Interior of Your Vehicle.
[Durable and Weatherproof Design] This fuel tank level gauge Built with a 316 stainless steel bezel and IP67 protection rating. no rust, corrosion resistant, long service life. 100TECH Guarantees with 1 Year Limited Warranty & Free Lifetime Technical Support.
Note:  1)The Default Setting of This Fuel Level Gauge is 240-33ohms.  2)This 100TECH Fuel Gauge Can Only Work With The Level Sender With The Corresponding Resistive Output ：240-33ohms 0-190ohms 240-30ohms 0-180ohms 10-180ohms . The Resistance Range Can Be Adjusted By Simply Pressing A Button(Long press the mode button for 3 seconds to enter the signal input setting mode, the backlight will begin to flash. The needle will stand at "E" position firstly,Then press the buttons one by one until you select the signal parameters that meet your needs). 3)This Boat Fuel Gauge Can Not Work With the Fuel Sending Unit with Output Signal(0-30ohms, 0-90ohms,73-10 ohms etc.)
