Product Description

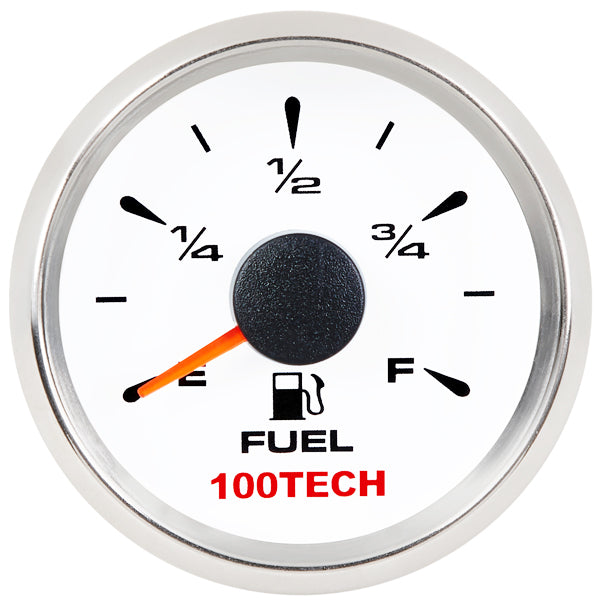

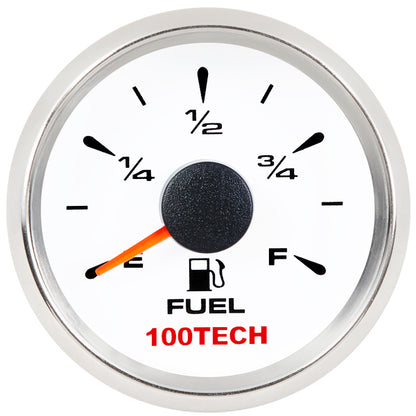

100TECH 5 Signal Adjustable Boat Fuel Gauge with 8-Color Backlight is perfect for anyone building a custom dash or replacing their stock fuel level gauge. This signal selectable gauge supports five common resistance signals (240-33 ohm, 0-190 ohm, 240-30 ohm, 0-180 ohm, 10-180 ohm) and can be easily adjusted via button. It connects directly to your vehicle's fuel level sensor and allows you to closely monitor the fuel level in your boat, car, truck, RV, or motorcycle.
Product Specifications:
-Mounting Dimension: 52 mm (2-1/16")
-Indicating Range: E ~ F (Empty to Full)
-Signal Input: 240-33Ω (Default), 0-190Ω, 240-30Ω, 0-180Ω, 10-180Ω
-Working Voltage: 9-32V DC
-Movement: Stepper Motor
-Sweep Angle: 240°
-Backlight: 8-Color Adjustable
Package Includes:
1x Marine Fuel Gauge

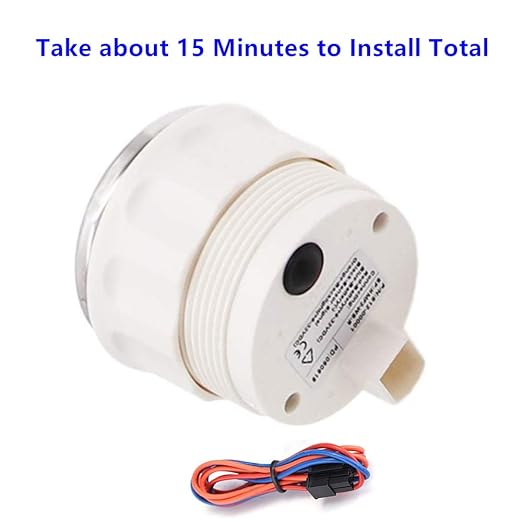

1x Wiring Harness
1x Installation Instructions
Note:
1) The default setting of this fuel level gauge is 240-33Ω.

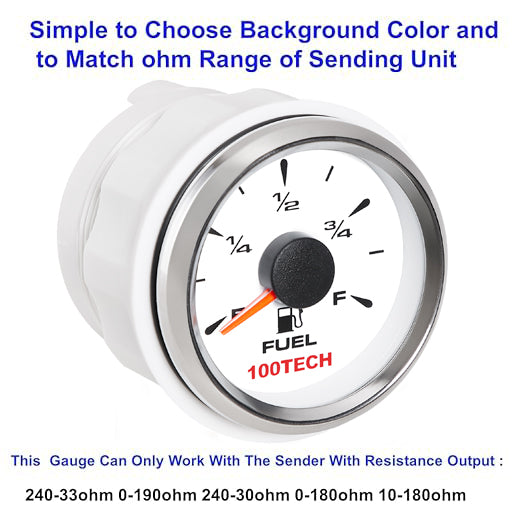

2) This 100TECH Signal Selectable Fuel Gauge can only work with the level sender with the corresponding resistive output: 240-33ohm, 0-190ohm, 240-30ohm, 0-180ohm, or 10-180ohm. The resistance range can be adjusted by pressing and holding the button for 3 seconds to enter setup mode.

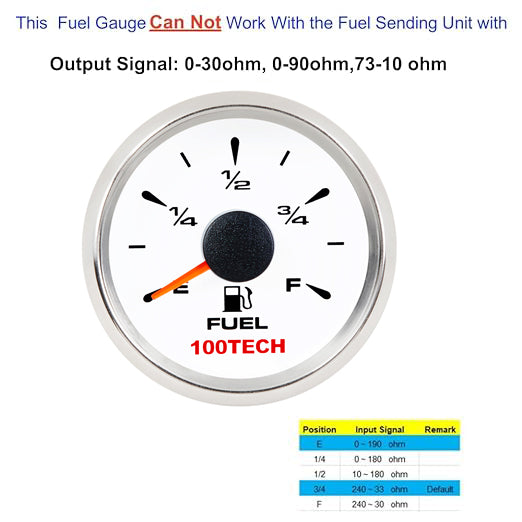

3) This boat fuel gauge cannot work with sending units with incompatible output signals (0-30 ohm, 0-90 ohm, 73-10 ohm, etc.). If you need, you can choose our corresponding products.
4) It is recommended to test the gauge and sensor on the bench first! This allows you to easily test both gauge and sensor and configure them prior to reinstalling.
About this item

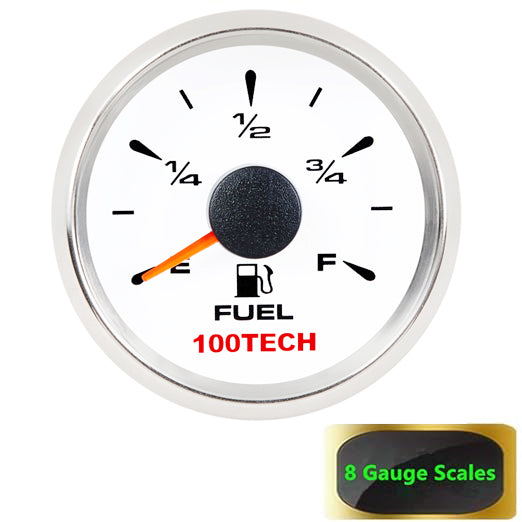

● [Precision Performance & Stable Fuel Monitoring] This aftermarket fuel level gauge adopts stepper motor movement and features a precision-engineered needle with anti-vibration technology, ensuring stable readings even in rough seas or high-vibration environments. The 8-level fine scale design significantly improves reading accuracy and identification.
● [Adjustable and Wide Application] This fuel level gauge works with most American standard fuel senders. Signal input: 240-33 ohm (default), 0-190 ohm, 240-30 ohm, 0-180 ohm, 10-180 ohm. Clear installation instructions ensure effortless setup.
● [Easy to Install and Calibrate] Mounting Dimension: 52 mm (2-1/16"); indication range: E-F; working voltage: 9-32V DC (for 12V-24V vehicles or engines). The instructions are easy to follow. When powered up, the needle sweeps from "E" to "F" and settles at the corresponding reading to verify proper gauge operation.
● [8-Color Adjustment Cycle Modes] Press the mode button briefly to switch the backlight color. Includes red (default), green, blue, white, yellow, yellow-green, orange, purple, and automatic circulation. Allows you to match your factory dashboard lights or add a custom style to the interior of your vehicle.
● [2-Year Warranty, Durable & IP67 Waterproof] This fuel tank level gauge is built with a 316 stainless steel bezel and an IP67 waterproof and dustproof rating; it is corrosion and fog resistant. 100TECH provides a 2-year limited warranty and free lifetime technical support.
● [Note] The default setting of this fuel level gauge is 240-33 ohm. This 100TECH fuel gauge can only work with the level sender with the corresponding resistive output: 240-33 ohm, 0-190 ohm, 240-30 ohm, 0-180 ohm, 10-180 ohm. The resistance range can be adjusted by simply pressing a button. This boat fuel gauge cannot work with sending units with incompatible output signals (0-30 ohm, 0-90 ohm, 73-10 ohm, etc.). If you need, you can choose our corresponding products.
● [Signal Settings] Long press the mode button for 3 seconds to enter the signal input setting mode; the backlight will begin to flash. The needle will stand at the "E" position first. Then press the mode button repeatedly until you select the signal parameters that meet your needs.
