Product Description

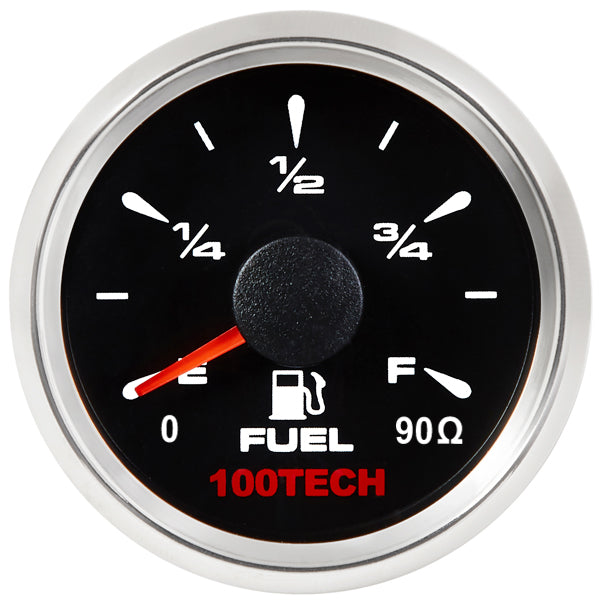

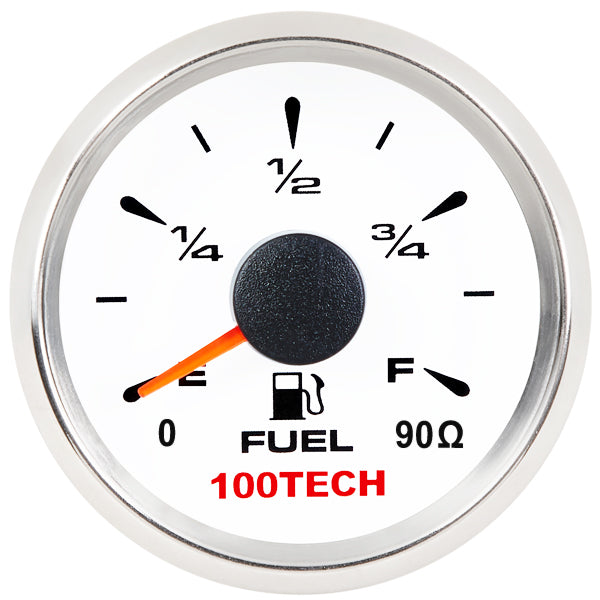

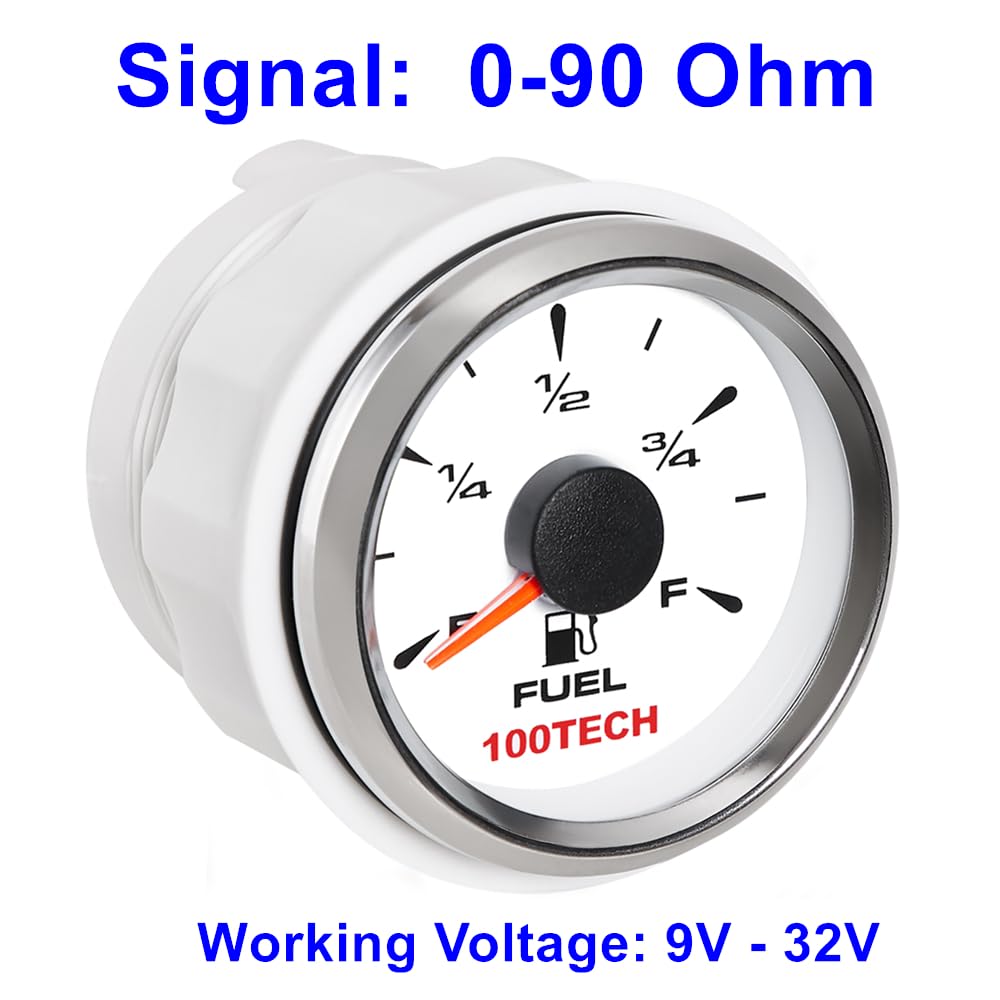

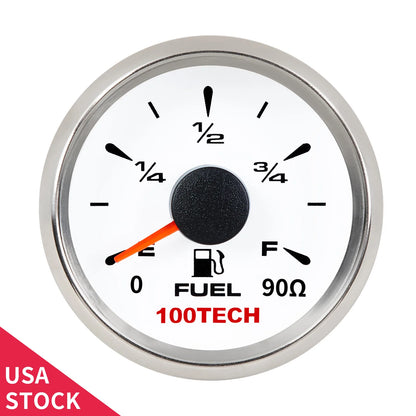

100TECH 8 Color Selectable Backlit 0-90 Ohm Boat Fuel Gauge is perfect for anyone building a custom dash or replacing their stock fuel level gauge. It connects directly to your vehicle's fuel level sensor and allows you to closely monitor the fuel level in your boat/vehicle.
Product Specifications:
-Fixing dimension: Φ52mm or 2-1/16''
-Indicating Range: E ~ F (Empty to Full)
-Signal: 0-90 Ohm
-Working Voltage: 9-32V DC
-Operation Mode: Stepper Motor
-Sweep Angle: 240°
-Backlight: 8-Color Adjustable
Package Includes:
1x Marine Fuel Gauge
1x Wiring Harness
1x Installation Instructions
Note:
1) This 100TECH 0-90 Ohm Fuel Gauge can only work with the level sender with the corresponding resistive output: 0-90 Ohm
2) It is recommended to test the gauge and sensor on the bench first! This allows you to easily test both gauge and sensor and configure them prior to reinstalling.
About this item
[A Fine Replacement Fuel Gauge] Signal: 0-90 Ohm, SUS 316 Stainless Steel Bezel, Stepper Motor Movement. The needle features smooth-sweeping motion and delivers reliable and stable performance (the needle won't bounce when the boat is underway or navigating rough sea conditions).
[240 degree Sweep Gauge] Wide viewing angle for easy reading at a glance, IP67 waterproof rated, 316 Stainless Steel Bezel, anti-fog & UV-resistant glass. Indicating Range: Empty-Full, Working voltage: 9-32V.
[Wide Application] 100TECH Boat Fuel Gauge is designed to measure & display fuel volume in your boat or vehicle's fuel tank. When powered up, the needle sweeps from "E" to "F" and settles at the corresponding reading.
[Easy To Install] Threaded Mount, Install diameter: Φ52mm or 2-1/16'', Indication range: E to F, Working voltage: 9-32V DC.
[8 Color Adjustment Cycle Modes] Available colors include Red (Default), Green, Blue, White, Yellow, Yellow-Green, Orange, Purple to match your factory dashboard lights and add a custom style to the interior of your vehicle.
Note: This 100TECH 0-90 Ohm Fuel Gauge can only work with the level sender with the corresponding resistive output: 0-90 Ohm.
[2 Years Warranty] 100TECH comes with a 2 Year Limited Warranty & lifetime technical support.
