Product Description
100TECH 0-30 ohm Marine Fuel Level Gauge, an Aftermarket Replacement Compatible with Classic Vehicles, Cars, Trucks, Boats, RVs and More, Features Red Backlight for Clear Visibility. It's Installed by Connecting the Gauge Directly to your Vehicle's Fuel Level Sensor and Allows You to Closely Monitor the Level of Fuel.
Product Specifications:
-Fixing dimension: Φ52mm or 2-1/16''
-Indicating Range: E ~ F (Empty to Full)
-Signal: 0-30 Ohm
-Working Voltage: 9-32V DC
-Operation Mode: Stepper Motor
Package Includes:
1x Marine Fuel Gauge
1x Mounting Bracket
1x Wiring Harness
1x Installation Instructions
Note:

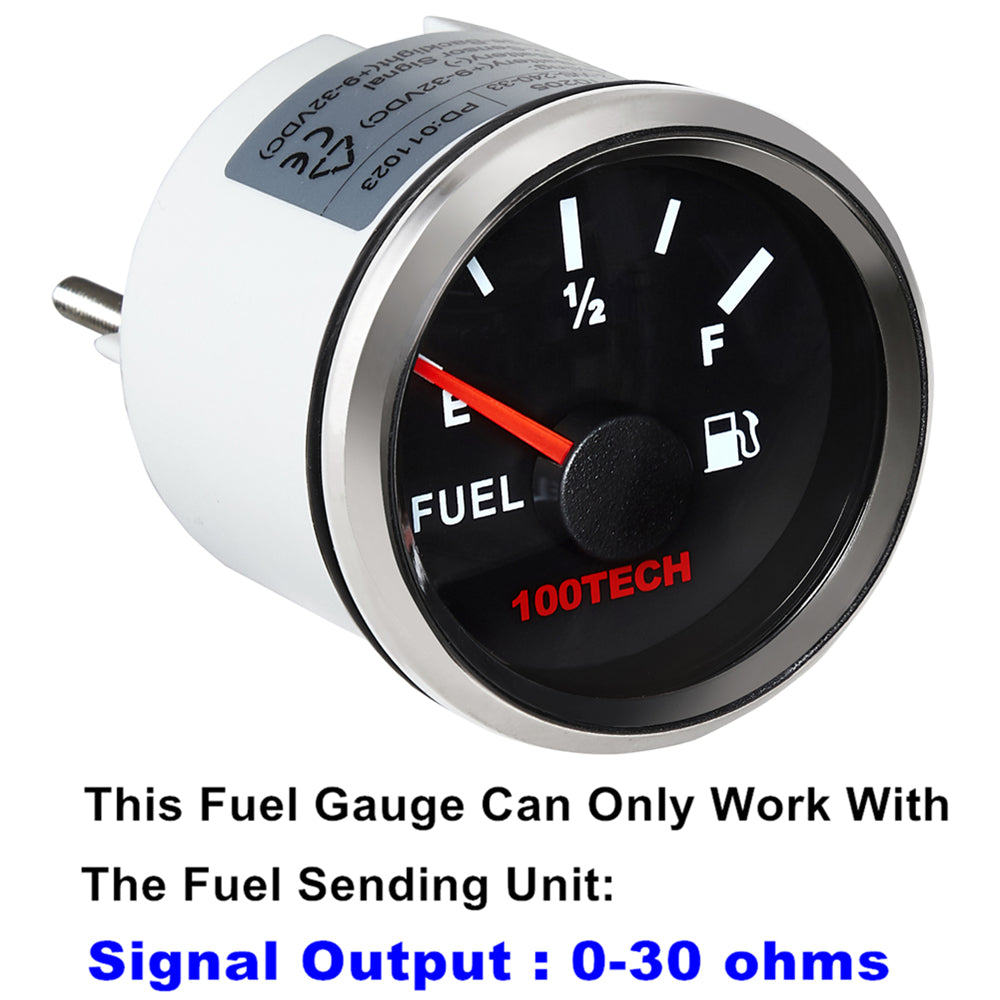

1) This 100TECH 0-30 Ohm Fuel Gauge Can Only Work With The Level Sender With The Corresponding Resistive Output: 0-30 Ohm.
2) It's Suggested To Hook Up The New Gauge And Sensor On The Bench First! It Allows You To Easily Test Both Gauge And Sensor And Configure Them Prior To Reinstalling.
About this item
[A Fine Aftermarket Replacement Fuel Level Gauge] Signal: 0-30 Ohm, Compatible with Classic Vehicles and Marine Use, SUS 316 Stainless Steel Bezel, Stepper Motor Movement, The Needle is Smooth Sweeping and delivers reliable and stable performance (the Needle doesn't Bounce all over the Place as the Vehicle is Underway or in Rough Sea Conditions).

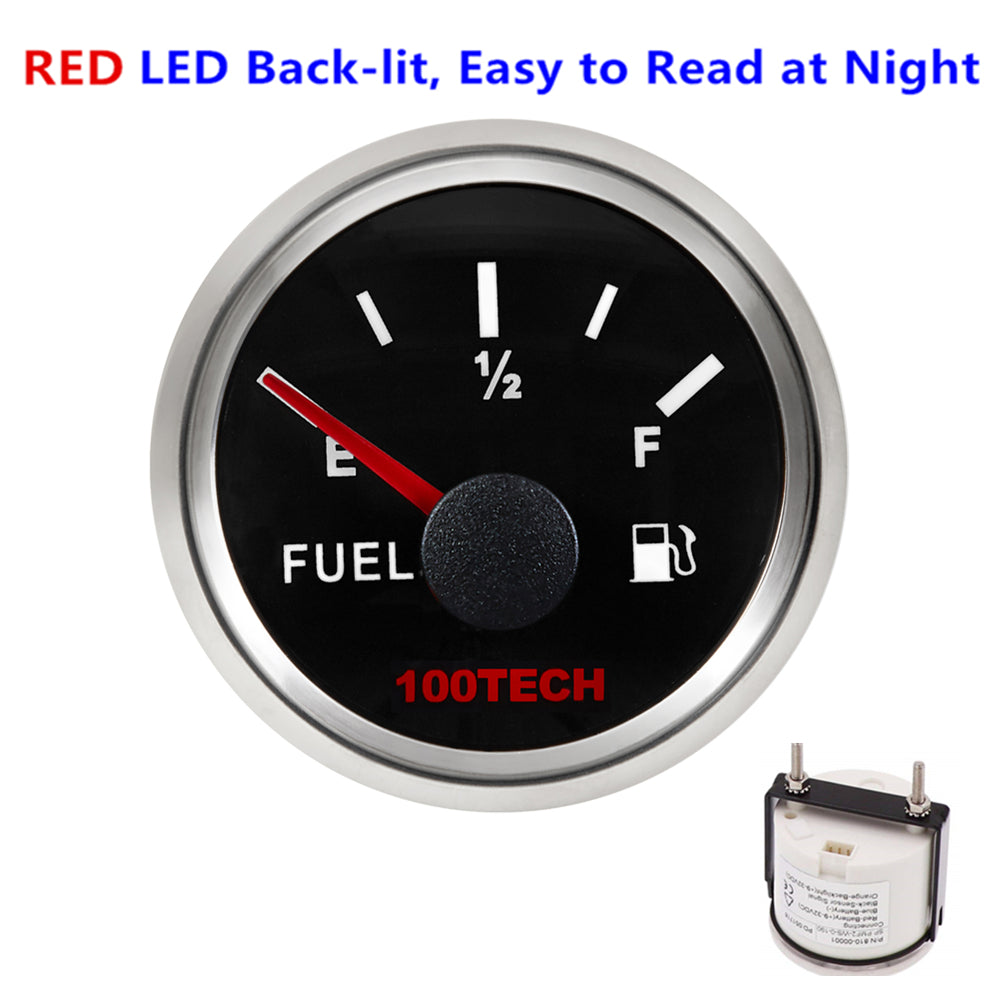

[Good Readability] Great Visual Contrast on Gauge Face. The Red Backlighting is not too bright or dim, looks really good during the day but even better at night lit up.
[Durable & Weatherproof Design] IP67 waterproof rated, 316 Stainless Steel Bezel, Anti-Fog & UV-Resistant Glass. Indicating Range: Empty-Full, Working voltage: 9-32V.
[Wide Application] 100TECH Fuel Level Gauge is Designed to Measure & Display Fuel Levels Accurately. When Powered up, the Needle Sweeps From "E" to "F", Then to the Correct Reading.
[Easy To Install] Mounting diameter: Φ52mm or 2-1/16'', Indication range: E to F, Working Voltage: 9-32V DC, Compatible With 12V-24V Systems.
Note: This 100TECH 0-30 Ohm Fuel Level Gauge Can Only Work With The Level Sender With The Corresponding Resistive Output: 0-30 Ohm.
[2 Years Warranty] 100TECH Guarantees with 2 Year Limited Warranty & Lifetime Technical Support.
