Product Description

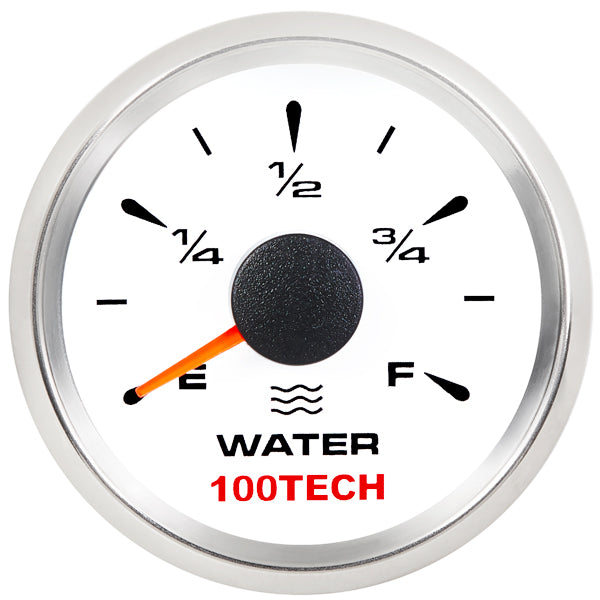

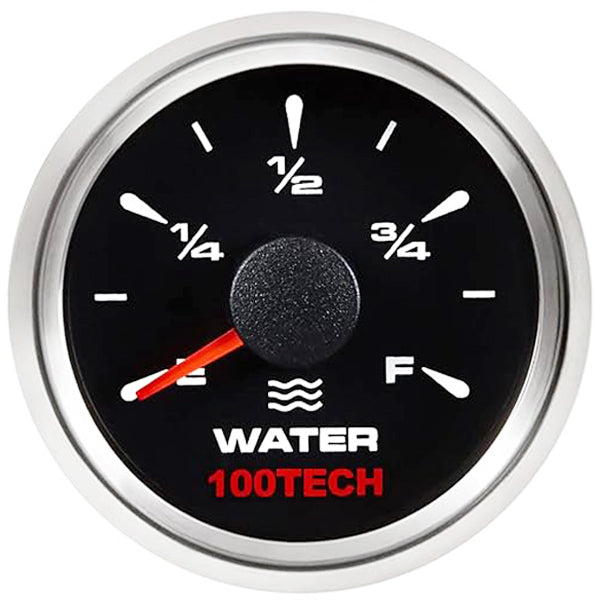

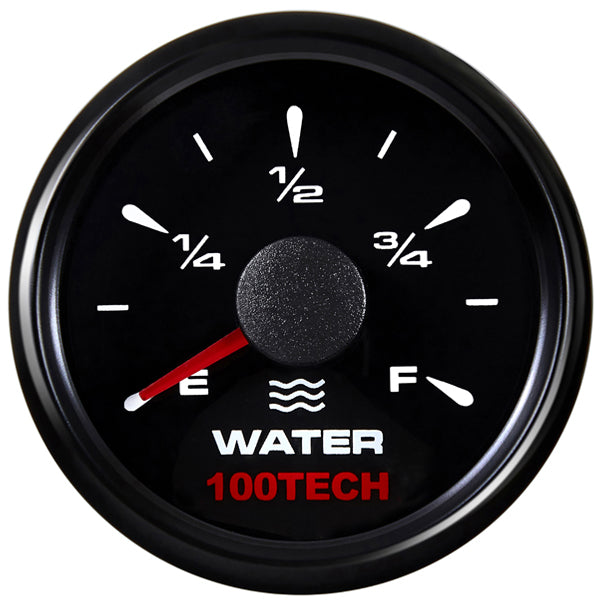

100TECH 5 Signal Adjustable Boat Water Tank Gauge with 8-Color Backlight is perfect for anyone building a custom dash or replacing their stock water level gauge. This signal selectable gauge supports five common resistance signals (240-33 ohm, 0-190 ohm, 240-30 ohm, 0-180 ohm, 10-180 ohm) and can be easily adjusted via button. It connects directly to your vehicle's water level sensor and allows you to closely monitor the water level in your boat, car, truck, or RV.
Product Specifications:
-Fixing dimension: Φ52mm or 2-1/16''
-Indicating Range: E ~ F (Empty to Full)
-Signal Input: 240-33Ω (Default), 0-190Ω, 240-30Ω, 0-180Ω, 10-180Ω
-Working Voltage: 9-32V DC
-Operation Mode: Stepper Motor
-Sweep Angle: 240°
-Backlight: 8-Color Adjustable
Package Includes:
1x Marine Water Tank Gauge
1x Wiring Harness
1x Installation Instructions
Note:
1) The default setting of this water level gauge is 240-33Ω.
2) This 100TECH Signal Selectable Water Tank Gauge can only work with the level sender with the corresponding resistive output: 240-33ohm, 0-190ohm, 240-30ohm, 0-180ohm, or 10-180ohm. The resistance range can be adjusted by pressing and holding the button for 3 seconds to enter setup mode.
3) It is recommended to test the gauge and sensor on the bench first! This allows you to easily test both gauge and sensor and configure them prior to reinstalling.
About this item
[A Fine Replacement Water Level Gauge] Stepper Motor Movement, 240° Sweep. The needle features smooth-sweeping motion and delivers reliable and stable performance (the needle won't bounce when the boat is underway or navigating rough sea conditions).
[5 Signal Selectable] Compatible with five common water level sender resistance signals: 240-33ohm (Default), 0-190ohm, 240-30ohm, 0-180ohm, 10-180ohm. The resistance range can be easily adjusted via button.
[8-Color Backlight] Available colors include Red (Default), Green, Blue, White, Yellow, Yellow Green, Orange, Purple to match your factory dashboard lights and add a custom style to the interior of your vehicle.
[Durable & Weatherproof Design] IP67 waterproof rated, 316 Stainless Steel Bezel, anti-fog & UV-resistant glass. Indicating Range: Empty-Full, Working voltage: 9-32V.
[Wide Application] 100TECH Signal Selectable Water Tank Gauge is designed to measure & display water volume in your boat or vehicle's water tank. When powered up, the needle sweeps from "E" to "F" and settles at the corresponding reading.
[Easy To Install] Threaded Mount, Install diameter: Φ52mm or 2-1/16'', Indication range: E to F, Working voltage: 9-32V DC (12V/24V).
Note: This 100TECH Signal Selectable Water Tank Gauge can only work with the level sender with the corresponding resistive output: 240-33Ω, 0-190Ω, 240-30Ω, 0-180Ω, or 10-180Ω.
[2 Years Warranty] 100TECH comes with a 2 Year Limited Warranty & lifetime technical support.
